Active Audio B70PoE-b

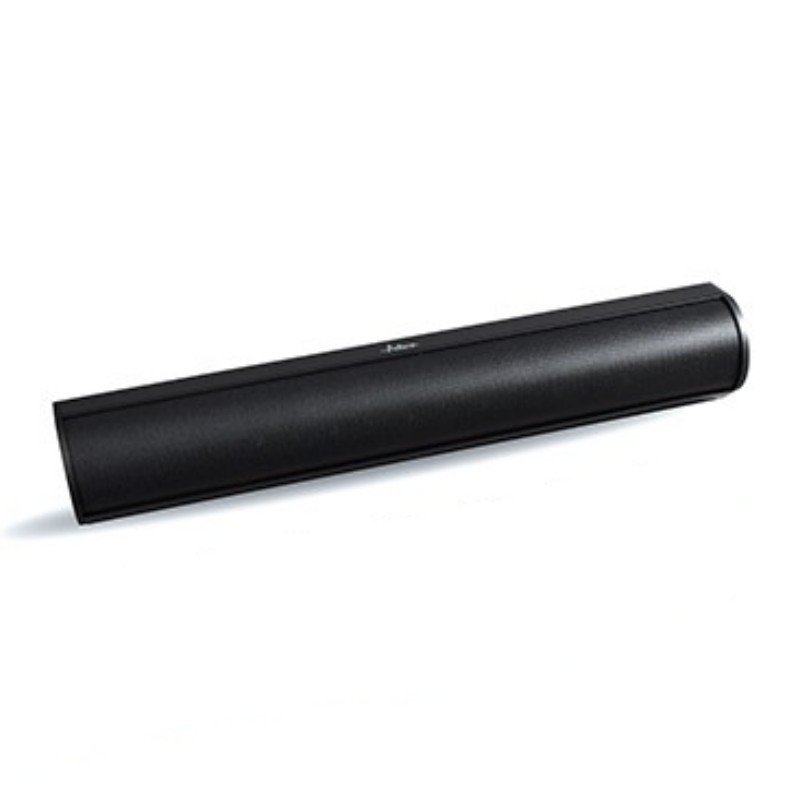

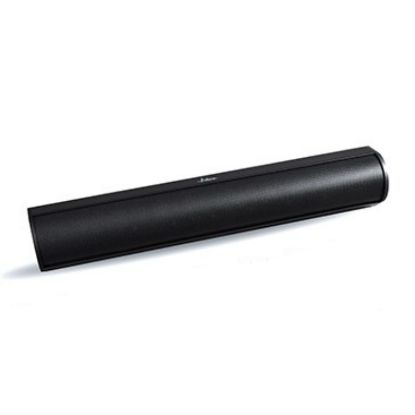

Active Audio B70PoE-b Ray-On PoE Sound bar 70cm Black

Variations

Picture of Active Audio B70PoE-b
Picture of Active Audio B70PoE-w
Call for pricing
Product code (SKU): 126935
Product code: ACT-B70PoE-b

Description

The B70 PoE is a 70cm sound bar, which is designed to be mounted horizontally.
The integrated 60W PoE+ amplifier module allows to power and put audio signal in the column with a single CAT6 cable.
With a nominal range of 12m, it offers a high-quality alternative dedicated for spaces which need a perfect horizontal directivity control : corridors, shopping rays, railway plateforms, underground stations, meeting rooms, etc.
Ray-On PoE is reserved for indoor use, it cannot be subjected directly to rain.
Range: 12m at ±5dB

Related products

Picture of Active Audio B70TC-b
Active Audio B70TC-b

Active Audio B70TC-b

Active Audio B70TC-b Ray-On Sound bar with high directivity 70cm 100V or 8Ω Black
Available
Call for pricing

Based on your selection, you may be interested in the following items

Picture of Active Audio iS112
Active Audio iS112

Active Audio iS112

Active Audio iS112 Subwoofer 12" passive - Black
Call for pricing
Picture of Active Audio iS115
Active Audio iS115

Active Audio iS115

Active Audio iS115 Subwoofer 15" passive - Black
Call for pricing



Details


Ray-On PoE series allows to the patented DGRC (Digital and Geometric Radiation Control) technology to be easily integrated in smart buildings.

The integrated 60W PoE+ amplifier module allows to power and put audio signal in the column with a single CAT6 cable.

Ray-On PoE can be installed close to any RJ45 socket connected to a network switch with a PoE+ port.

The internal DSP of the enclosure provides a DANTE input and an optimal frequency response.

Ray-On PoE is reserved for indoor use, it cannot be subjected directly to rain.

Active Audio Ray-On PoE Series applications

Applications

  • Transport Hubs
  • Public places
  • Conference room
  • Houses of worship
Active Audio Ray-On PoE Series applications Advantages

Advantages

  • Flawless intelligibility
  • Wide and even sound coverage
  • Vertical mounting system
  • Dante-enabled
Active Audio Ray-On PoE Series applications Acoustical data

Acoustical data

  • Max SPL: 94dBSPL @ 5m
  • Sensitivity: 74dB/1W @ 5m
  • Range ±5dB: 12m
  • Frequency bandwidth: (-10dB) 120Hz-18kHz
  • Horizontal opening angle: 40° (1kHz)
  • Vertical directivity: 180° (1kHz)
Active Audio Ray-On PoE Series applications Electrical and mechanical data

Electrical data

  • Continous power: 60W
  • Nominal impedance: 8Ω
  • Connectors: RJ45
  • Protection: Thermal fuse
  • Certification: PoE+ certified

Mechanical data

  • Dimensions (WxPxH): 128mm x 117mm x 706mm
  • Net / shipping weight: 5.4kg / 5.9kg
  • Environment: IP23
  • Colors: white, black
