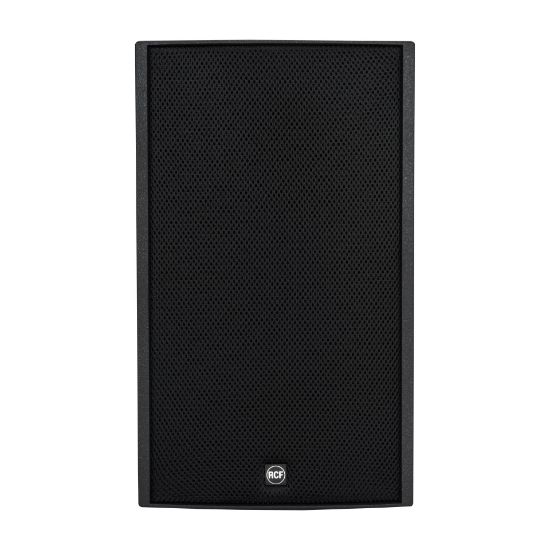

M 801 is a multipurpose two-way full-range speaker system, suitable in a wide range of installations. The compactness, together with the elegant and neutral design with accurate finishing make M 801 suitable for almost any environment and architectural constraint. Available mounting accessories allow you to use the M 801 wall or ceiling mounted, with reference to the several possible applications. The M 801 has a controlled dispersion and delivers undistorted SPL value above any expectation from such a compact speaker system. The M 801 features high sensitivity thanks to the use of oversized magnets and a comfortable sound quality with smooth and wide frequency response performed thanks to the Kapton diaphragm compression driver loaded on a constant directivity horn. The LICC crossover design includes an electronic protection on high frequency device.
High Quality 2-way passive loudspeaker
1 x 8" woofer, vented
1 x 1" in driver, on 90°x60° CD horn
High Power Handling ‘Low Impedance Compensated Crossover', with electronic protection for the driver
150W AES power handling
Steel Front Grille with robust double mesh polyester clothing
Rotatable RCF front logo
Installation points are available on the rear panel, top and bottom
All models have a 4-pin EUROBLOCK connector (audio input and parallel link output)
