Technical Information

Product

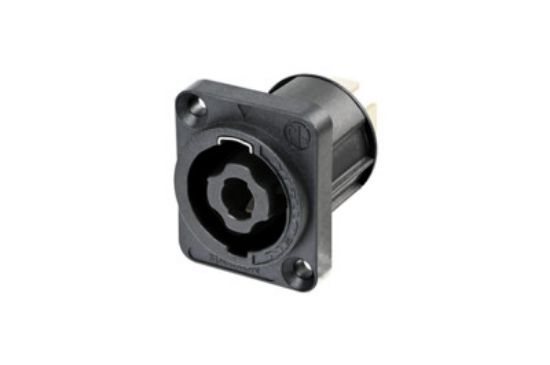

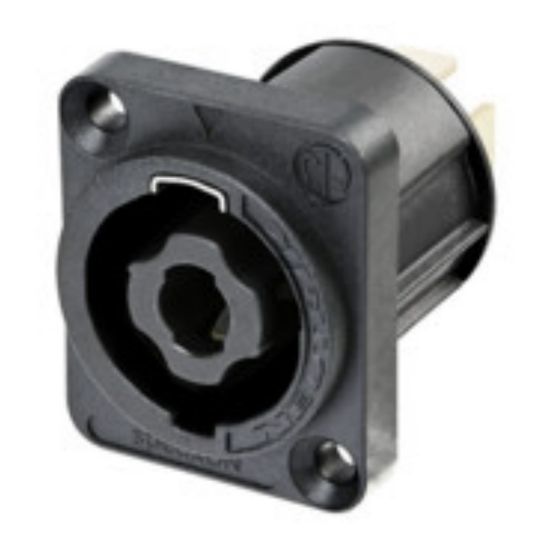

Title: NL4MPXX
Gender: male

Electrical
Contact resistance: ? 2 mΩ
Dielectric strength: 2.8 kVac
Insulation resistance: >0.1 G? (after dampheat)
Rated current per contact: 25 A rms continuous (audio rating significantly higher, depending on signal)
Rated voltage: 250 V ac
Attention speakON is NOT to be used as an AC mains or power supply connector!

Mechanical
Lifetime: > 5000 mating cycles
Termination: 3/16" flat tabs (e.g. NLFASTON)
Locking device: Quick Lock
Chassis shape: D
Layout: standard hole position, thru holes

Material
Contact plating: Ag
Locking element: Stainless Steel
Shell: Polyamide (PA 6.6)
Contacts: Copper Alloy

Environmental
Flammability: UL94 V-0
Temperature range: -30 °C to +80 °C
