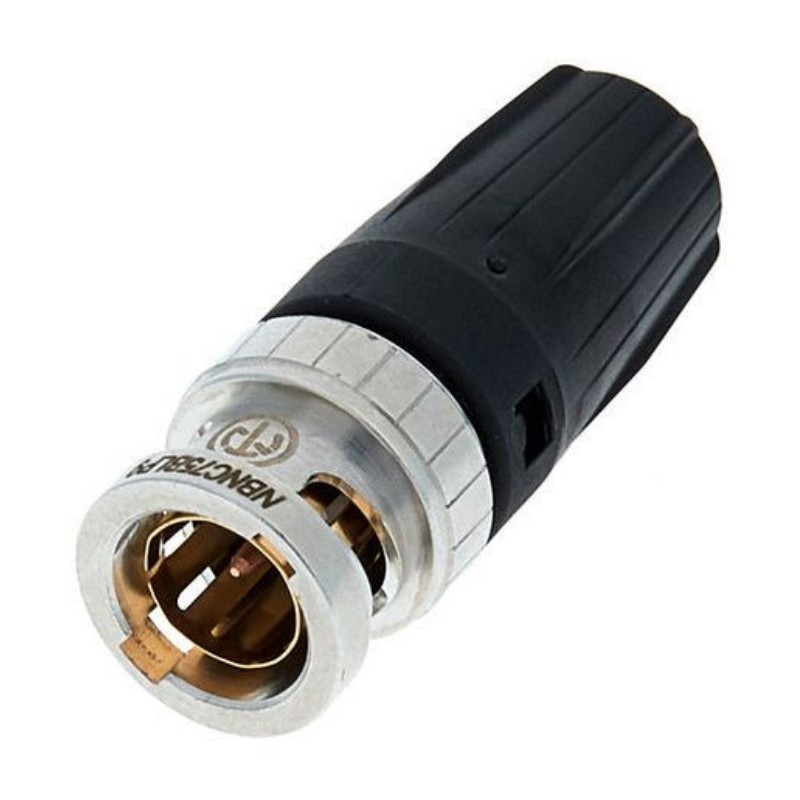

The rearTWIST HD BNC cable connector offers a true 75Ω design and is perfectly suitable for HD applications. The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding. RearTWIST Principle locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507). Ideal for recessed bulkheads where access to the "head" of the connector might be an issue. These connectors turn from the back and not the front

Suitable cables: Argosy Image 720, Belden 1505A (ANH), Belden 8241F, CAE HD08370LSZH, Canare L-4CFB, Clark Wire CD7559-0, Clark Wire CD7559F-0, CommScope 5565, Draka 0.8/3.7 AF, Draka 755-801, Draka 755-803, Draka 755-804, Gepco VPM2000, Proel HPC 810, Suhner S0426, Sommer 600-0451, Sommer 600-162(F), Percon VK6
Crimp size: Pin: 1,6mm (square), Shield: 6,47mm (hex)

Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles
Snug-fit center pin insert provides tactile feedback
Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
Excellent cable protection and retention
Precise Swiss machined brass parts for outstanding durability
Accessories include color coded boots in 10 standard colors, crimp tool and dies
