- 13 %

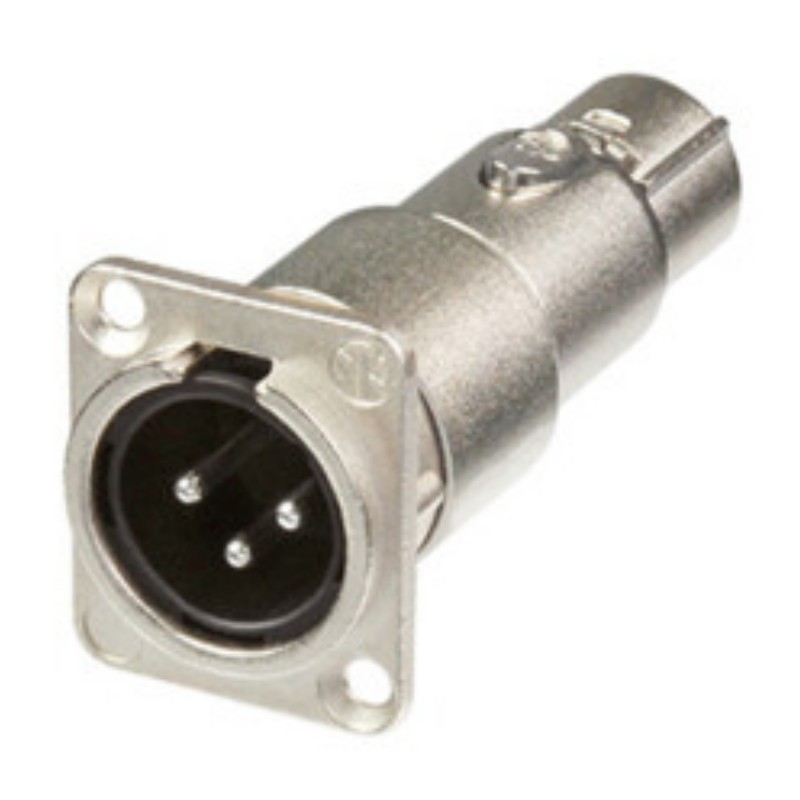

Neutrik NA3MDF

Neutrik NA3MDF Xlr Αρσενικό - Θηλυκό Feedthrough Adapter Για Panel Mount - Ασημί

11,16 €

12,90 €

Μη Διαθέσιμο

Κωδικός (SKU): 131175

Κωδικός προϊόντος: NEU-NA3MDF

Λήψεις

Περιγραφή

XLR male-female feedthrough adapter for panel mount

Electrical
Capacitance between contacts: ? 4 pF
Contact resistance: ? 5 mΩ
Dielectric strength: 1,5 kVdc
Insulation resistance: > 2 GΩ (initial)
Rated current per contact: 16 A
Rated voltage: < 50 V

Mechanical
Insertion force: ? 20 N
Withdrawal force: ? 20 N
Lifetime: > 1000 mating cycles
Wiresize max.: 2.5 mm²
Wiresize max.: 14 AWG
Wiring: Solder contacts
Locking device: Latch lock
Chassis shape: D

Material
Contact plating: 2 µm Ag over 2 µm Ni
Insert: Polyamide (PA 6.6 30 % GR)
Locking element: Steel Ck67
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: Nickel

Environmental
Flammability: UL 94 HB
Standard compliance: IEC 61076-2-103
Protection class: IP 40
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C to +80 °C
