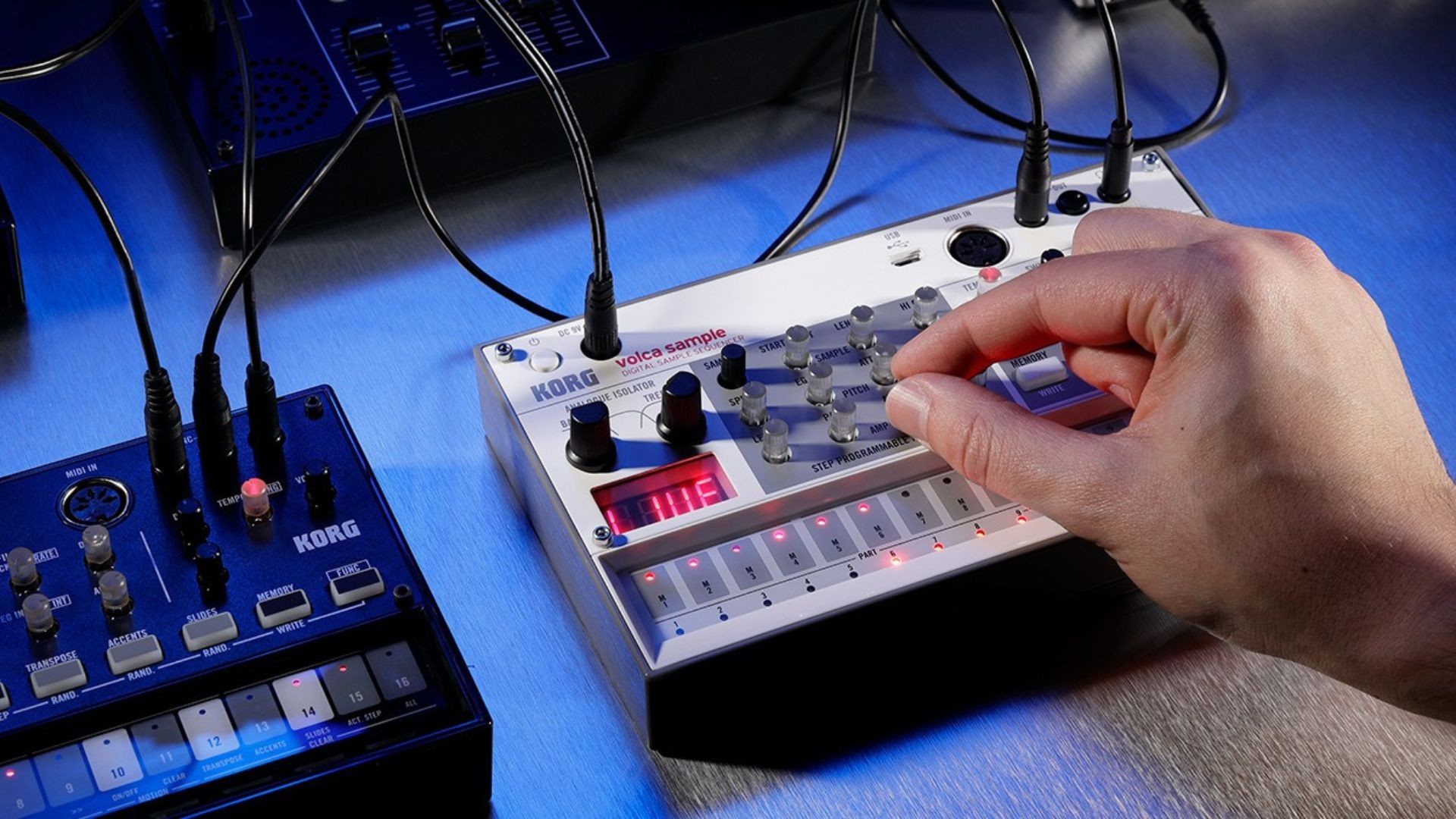

Your portable beat making studio

The volca sample has everything that you need to create the music you like,and in a portable small form factor that you can take anywhere! On its own, it is an advanced sample machine with a powerful engine capable of 8 voice polyphony, digital reverb, a rich powerful double filter and plenty of knobs for sample manipulation which make this a powerful sampler.

Totally hands on with plenty of knobs for sample manipulation, volca sample runs on 6 AA batteries, has an integrated speaker and at only 372g/13oz (without batteries) is perfect for stand-alone use! Furthermore, with its USB, SYNC IN-OUT and MIDI connections, volca sample can integrate seamlessly with your live rig, production studio and of course any other volca!

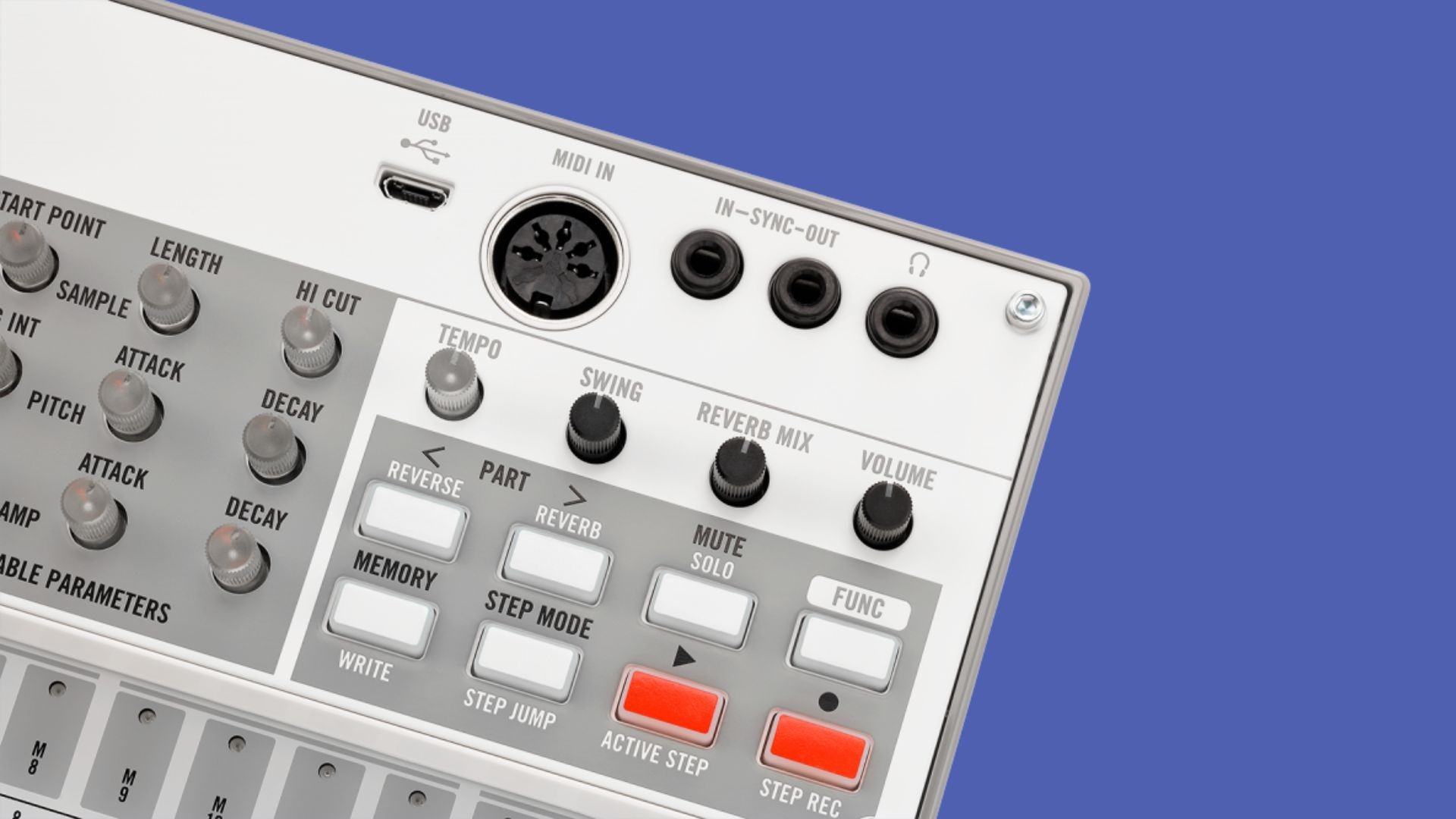

USB for Faster Sample Management and Better Connectivity

The new micro USB port added to the volca sample allows you to connect your volca sample to your computer to easily control your volca and manage your samples. It allows you to easily control, sync, and play your volca sample from any DAW.

Plus, each part has the option to receive on a separate corresponding MIDI channel, making it easier to perform when using an external device such as a sequencer or keyboard.

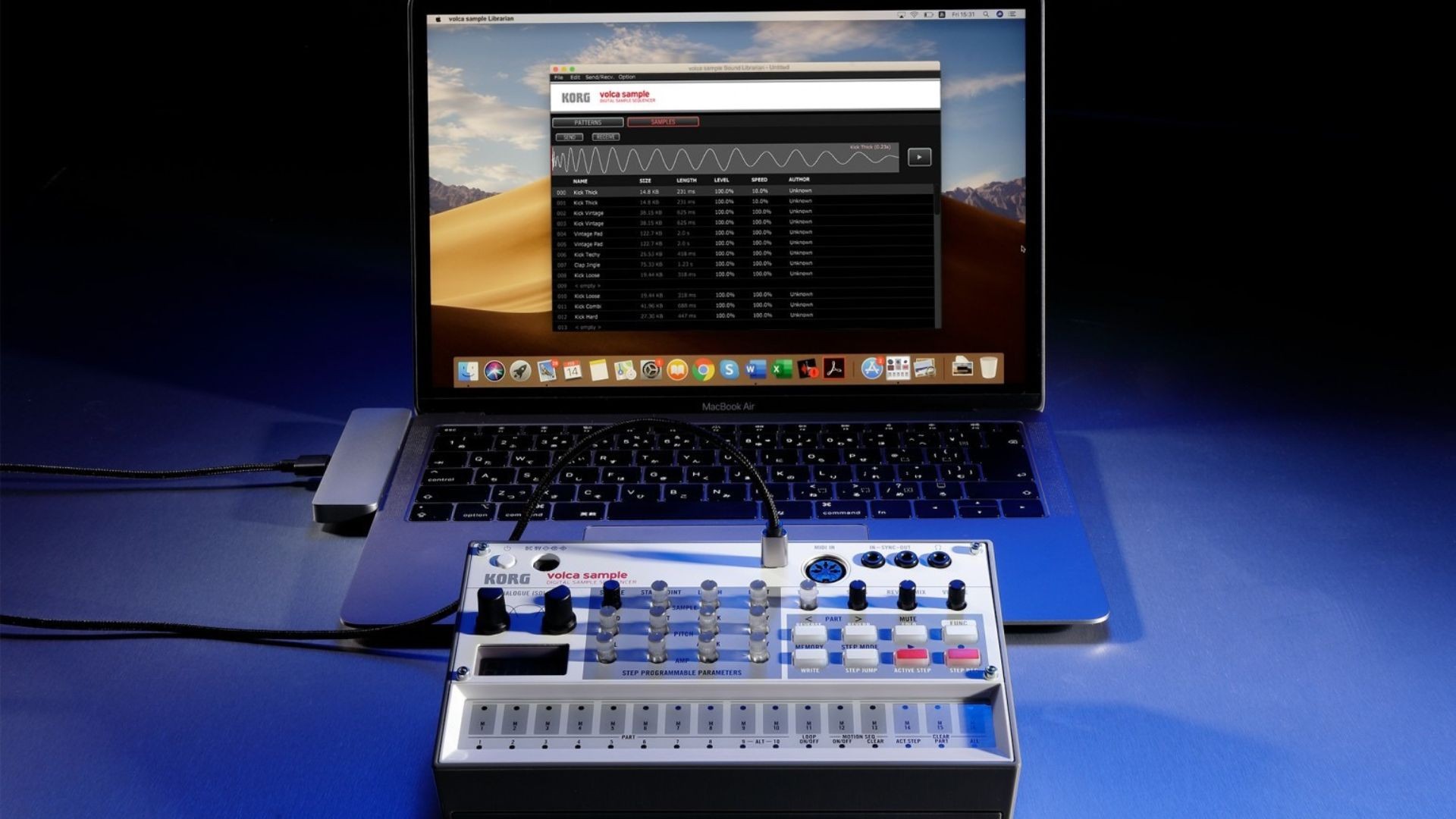

Easier Sample and Pattern Management with your Computer

With the volca sample’s dedicated Librarian software available for Mac and PC utilizing the USB port managing and sending your samples and patterns back and forth is now instantaneous and pain-free process.

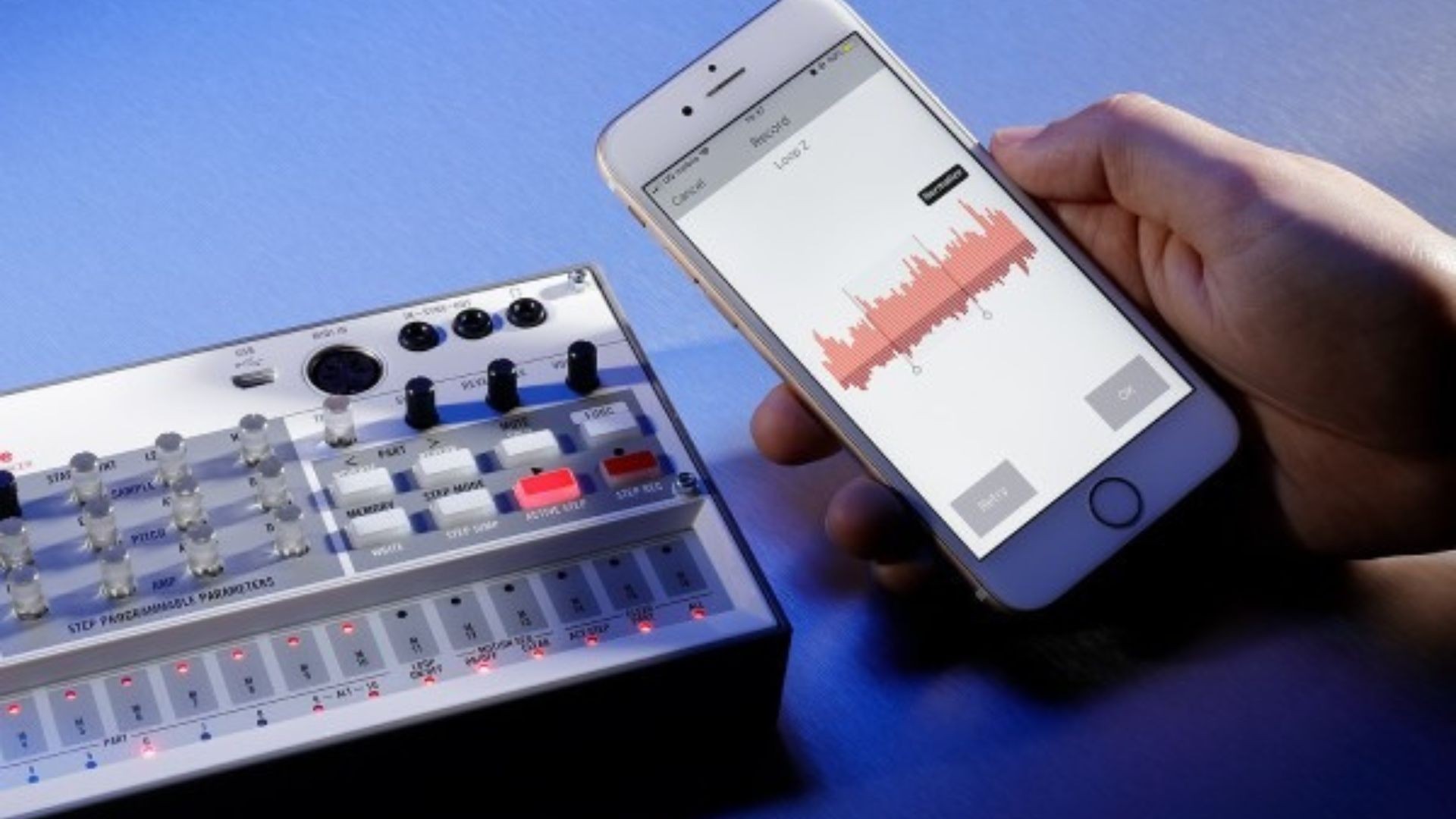

You can also use the dedicated app AudioPocket manager for iOS to record new samples on the fly and transfer them to your volca sample instantly.

Added Features

Take your Beats Further Two new features have been added to this new volca sample that willl help in your music making process:

• Pattern chain mode with 2 different STEP JUMP modes
• Start delay function: Go “off the grid” with the new delay feature that lets you slightly delay the start of any part to achieve different kinds of grooves and swing..

Specifications

• Keyboard: Multi touch Keyboard
• Sampler: Type: PCM

Maximum Polyphony: 8

Number of Samples: 200（150 presets + 50 empty slots. All slots are user over writable）

Memory Size for Sample: 8MB、130 seconds

Sampling Frequency: 31.25kHz、16bit

Edit: Sample（Start Point、Start Delay、Length、Hi Cut）、Pitch（Speed、EG Int、Attack、Decay）、Amp（Level、Pan、Attack、Decay）、Reverse On/Off

• Effects:

Digital Reverb: On/Off、Mix

Analogue Isolator: Bass、Treble

Specifications

• Sequencer:

Number of Parts: 10

Number of Steps: 16

Number of Recording Patterns: 16 (1 to 10 have presets loaded by default on factory settings. Pattern chain function)

Control: Motion Sequence、Active Step、Step Jump、Swing

• Inputs:

Audio Input: Headphones (3.5mm stereo mini jack)

Sync In: (3.5mm monaural mini jack, Maximum input level: 20V)

Sync Out: (3.5mm monaural mini jack, Maximum Output level: 5V)

MIDI: MIDI IN

USB: micro-B USB port

Specifications

• Power:

Battery Life: Approximately 10 hours (using alkaline batteries)

Power Supply: AA alkaline battery ×6, AA nickel-metal hydride battery ×6, or AC adapter “KA-350” (optional)

• Included Items: AA alkaline battery ×6 (for verifying operation), Sync cable
• Accessories: KA-350 AC adapter, SEQUENZ CB-4VOLCA hard shell case, SEQUENZ CC-VOLCA dedicated carrying case, SQ-CABLE-6 sync cable
• Dimensions (W x D x H): 193（W）x 115（D）x 45（H）mm (including knob height)
• Weight: 372g (Excluding batteries)
