Specifications

• System Type: 12IN
• Powered Loudspeaker Woofer Model: 712G
• Woofer Size: 12"
• Woofer Magnet: Ferrite
• Woofer Voice Coil: 2"

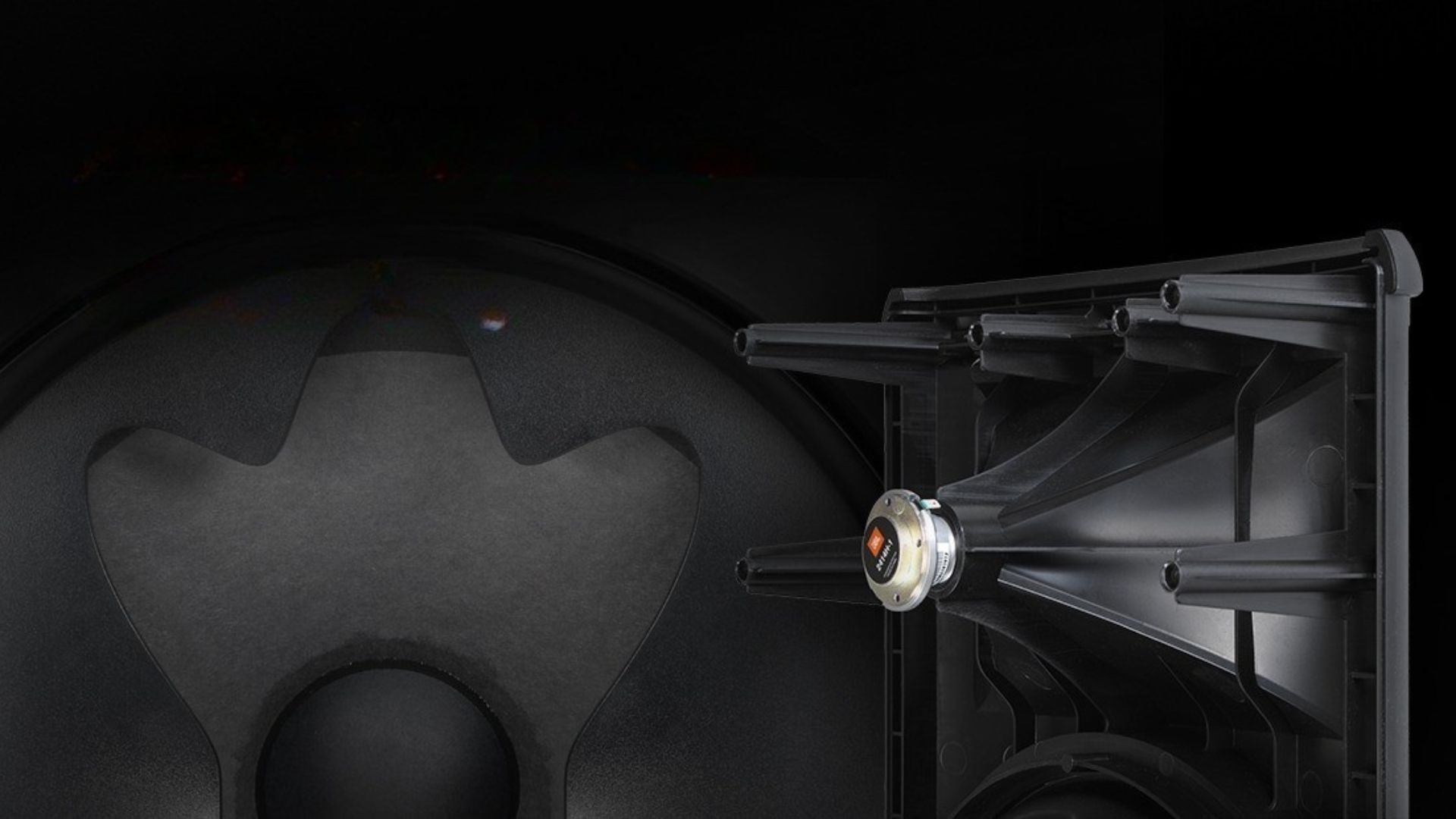

• Tweeter Model: 2414H Compression Driver

Specifications

• Tweeter Size: 1''
• Tweeter Magnet: Neodymium
• Transducer Impedence: LF 4ohm rated, HF 8ohm rated
• Max SPL: 127dB @1m/4Pi
• Freq Range -10: 50Hz - 20kHz
• Freq Range -3: 60Hz - 20kHz

Specifications

• Hor Dispersion: 100°
• Vert Dispersion: 60°
• Power Rating: 1300W peak / 650 RMS
• AC power input: 100V-120V or 220V-240V
• Cooling: Passive
• LED indicators: 1 Power LED, 1 Limit LED, 1 Front LED, 2 Signal/SSM LEDs

Specifications

• Input Impedance: 50k/100k un-balanced/balanced
• Input Gain: -∞to +36db
• Crossover Frequency: 2 kHz

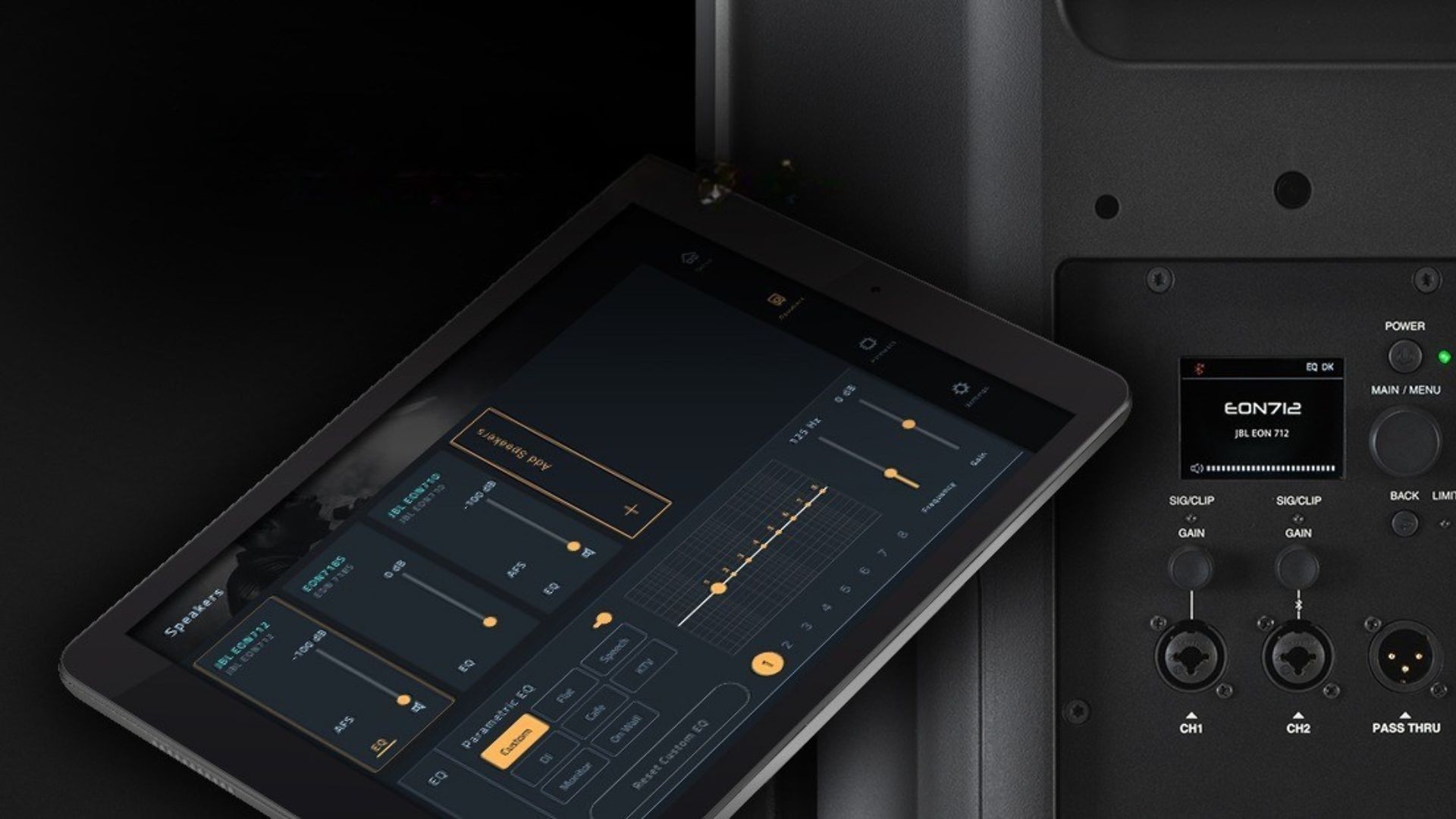

• I/O:

2 XLR Combo Jacks / BT

1 XLR M Thru

• Cabinet: PP+10% Talc
• Grille: 16GA perforated steel with acoustically transparent black cloth backing

Specifications

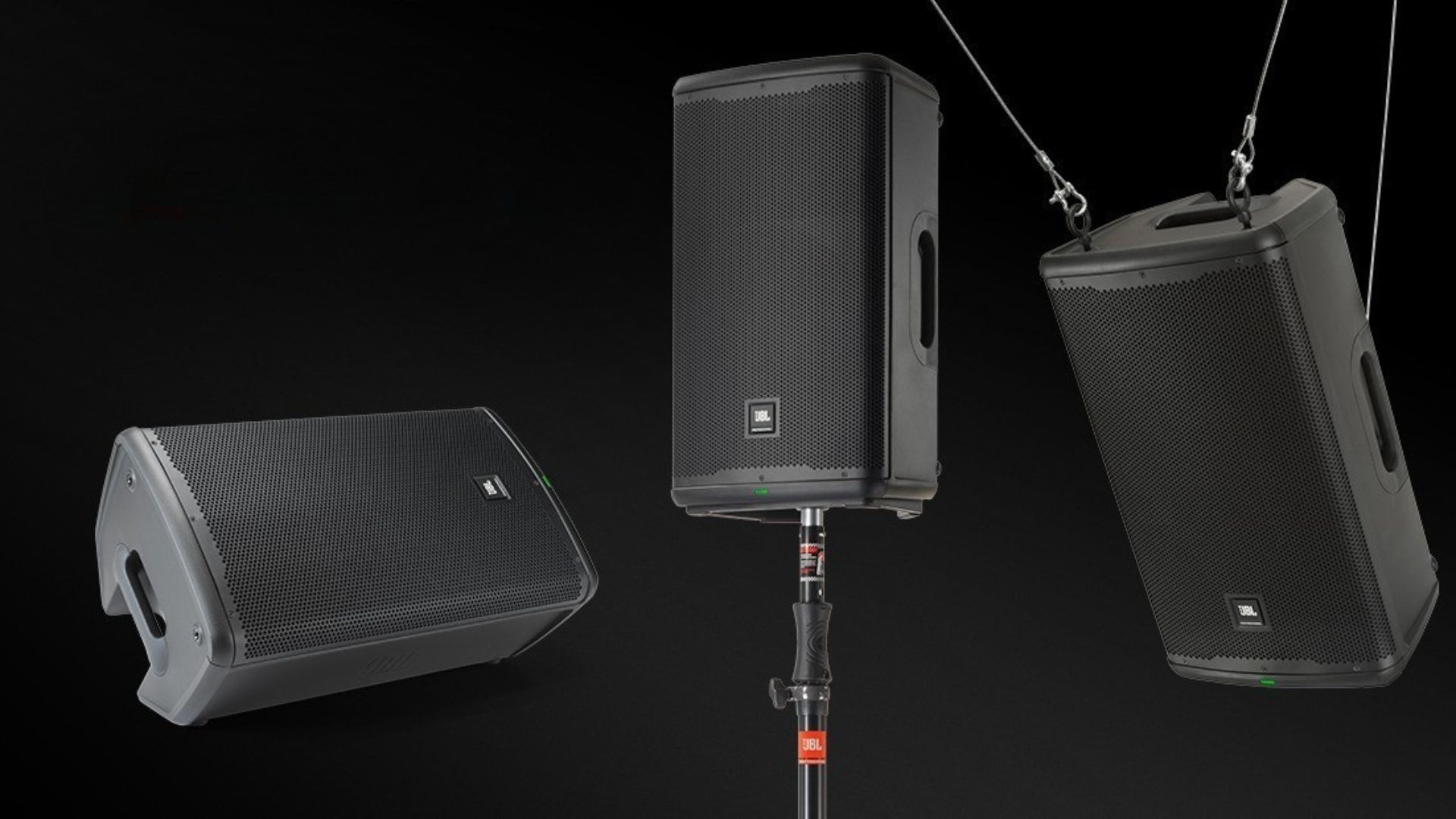

• Suspension / Mounting: 4 M10 Suspension points, 36mm Pole Socket, universal yoke bracket holes
• Handles: 2, cable channel on bottom
• Net Weight: 14.6kg
• Gross Weight: 18.4kg
• Product Dims (HxWxL):  670x381x328mm
• Shipping Dims (HxWxL):  684x490x430mm
