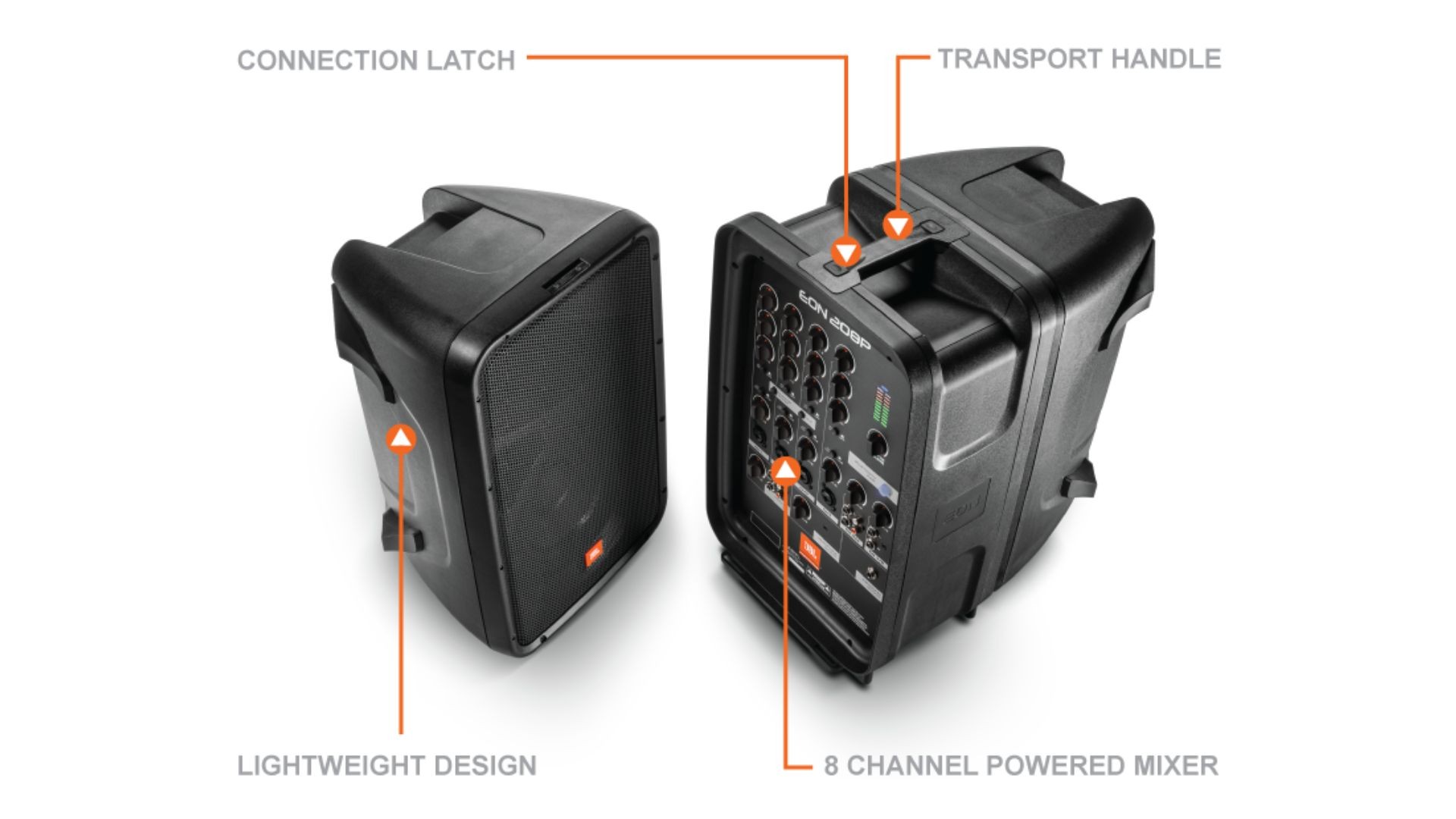

Professional-Grade Mixer

The 8-channel detachable mixer gives you the power and flexibility to sculpt your sound and be heard with stunning clarity at any venue.

Simply connect your mics, instruments and other sound sources and start performing.

The intuitive mixer helps you dial-in great live sound quickly and easily

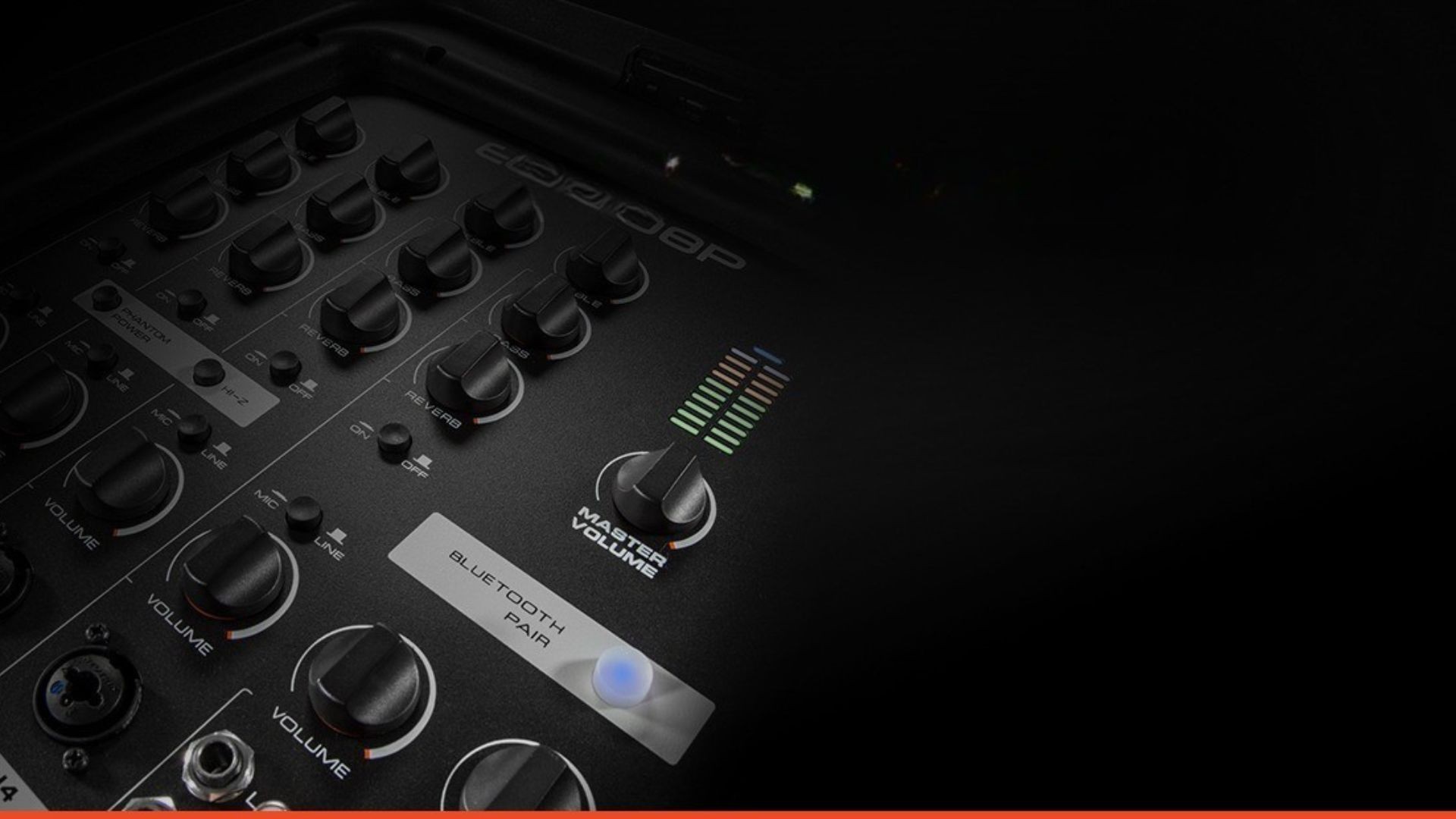

Bluetooth Streaming

With Bluetooth connectivity, EON208P lets you stream audio from your mobile device.

Now you can DJ a party right from the dance floor, or play pre-recorded material for your meeting, worship event, or health club—all without the hassle of wires.

Specifications

• System Type Portable: 2-way full-range loudspeakers with powered mixer
• Maximum SPL Output: 121 dB peak
• Frequency Range (-10dB): 60 Hz - 20 kHz
• Frequency Response (±3 dB): 70 Hz - 18 kHz
• AC Input: 100-120 V, 220-240 V 50/60 Hz
• Amp Design: Class D

Specifications

• System Power Rating: 300 W (2x 150 W stereo)
• Outputs

Monitor Out: one pair of RCA jacks (stereo), and one pair of 1/4"" balanced TRS jacks (stereo)

Headphone Out: 3.5mm stereo jack

Subwoofer Out: 1/4"" balanced TRS jack

• Channels

1-4: XLR/1/4" jack combo connectors

5-6: one pair of 1/4" balanced TRS jacks (stereo), and one pair of RCA jacks (stereo)

7-8: one pair of 1/4" balanced TRS jacks (stereo), and a 3.5mm stereo jack

• Phantom Power: CH1 and CH2 have phantom power control and share the same selection switch
• Hi-Z Selection: CH3 has a Hi-Z selection switch used for guitar signal input

Specifications

• Mixer Output Connectors:

Monitor Out: one pair of RCA jacks (stereo), and one pair of 1/4" balanced TRS jacks (stereo)

Headphone Out: 3.5mm stereo jack

Subwoofer Out: 1/4" balanced TRS jack

• Treble/Bass EQ: Per-channel high- and low-shelf filters; +/- 12dB cut and boost
• System Limiter: On-board DSP limiting
• LF Driver: 1x JBL 8" (203mm) woofer
• HF Driver: 1x 1" Neodymuim black aluminum dome tweeter
• Coverage Pattern: 100° horizontal x 60° vertical

Specifications

• Crossover Frequency: 2 kHz
• Crossover Type: 2-way passive network, 2nd order filters (12dB cutoff per octave)
• Enclosure: Polypropylene
• Suspension/Mounting: 36 mm pole socket
• Handles: One on top
• Speaker Grille: Powder-coated perforated steel

Specifications

• Dimensions (H x W x D): 575mm x 775mm x 400mm
• Net Weight: 17.6 kg
• Mic Inputs: 4
• EQ: Treble, Bass
• Effects: Reverb
• Inputs

1-4: XLR/1/4"" jack combo connectors

5-6: one pair of 1/4"" balanced TRS jacks (stereo), and one pair of RCA jacks (stereo)

7-8: one pair of 1/4"" balanced TRS jacks (stereo), and a 3.5mm stereo jack
