DTS Lighting SYNERGY 6 PROFILE

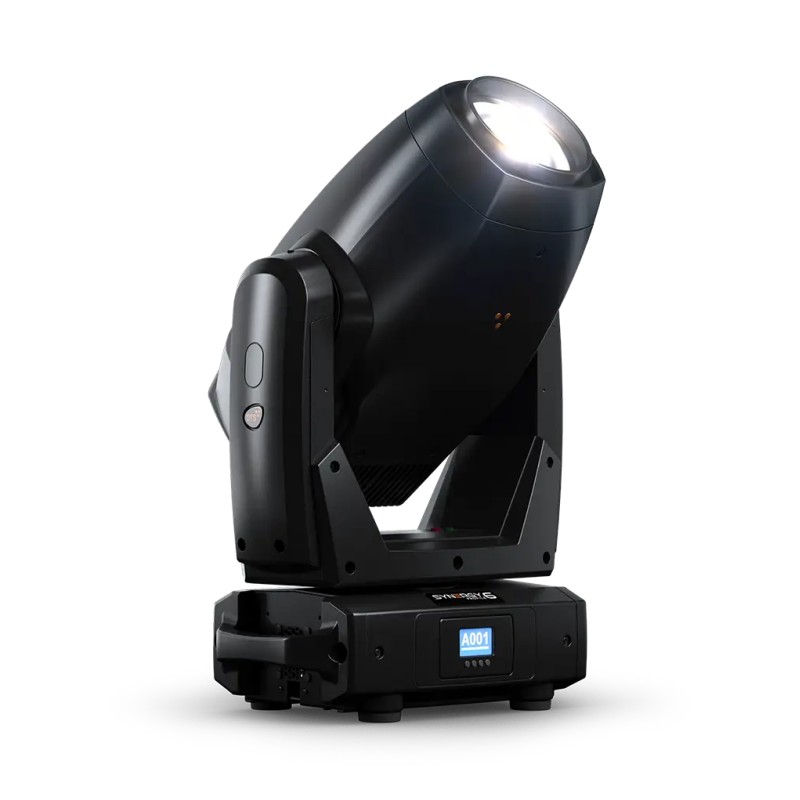

DTS Lighting SYNERGY 6 PROFILE Κινούμενη Κεφαλή Profile 570W LED CMY CTO IP20 - Μαύρο
Διαθέσιμο 10 εως 30 ημέρες
Κωδικός (SKU): 130482
Κωδικός προϊόντος: DTS-SYNERGY 6 PROFILE

Περιγραφή

570 W LED Source. Powerful 7000 K white LED delivering over 25,000 lumens for high-output applications.
4.6°–43° Linear Zoom with Autofocus. Extremely versatile beam angle, ranging from a narrow spot to a wide wash in a single unit.
CMY + Linear CTO Color System. Smooth color mixing and color temperature adjustment from 7000 K to 3000 K with accurate rendering.
6-Color Wheel + HI-CRI Filter. Wide color palette with instant access, including a HI-CRI filter (CRI >90) for demanding TV and theatre use.
4-Blade Rotating Framing System. Allows for complex beam shaping and clean cuts, with ±45° full module rotation.
Built-in Dynamic Effects. Includes prisms, customizable rotating gobo wheel, and FX engine for animated projections and creative effects.
16-bit Control on Pan/Tilt and Shutters. Ultra-smooth and precise movement thanks to high-resolution control and tri-phase stepper motors.
Art-Net, sACN, RDM and DMX512 Compatibility. Broad protocol support for seamless integration in professional lighting networks.
Silent Operation Modes. Three selectable modes (Standard, Silent, Auto) suitable for theatres, studios, and quiet environments.
Firmware Updatable + Backup Battery Display. Full access to settings even without power, and easy firmware updates via DTS USB dongle.


Applications


Theatre: For precise and silent shaped projections, with rich colors and full light control.

Concerts and Live Shows: Ideal for dynamic effects and powerful light beams, thanks to its high brightness and built-in effects.

Television and Broadcast Studios: High-CRI calibrated color and silent operation, perfect for professional shooting.

Temporary Architectural Installations: Scenic projections on buildings and structures for cultural events or ceremonies.

Theme Parks and Attractions: Immersive lighting effects, programmable and reliable in complex environments.

Corporate Events and Trade Shows: To enhance presentations, booths, and stage designs with precise and versatile lighting.

DTS Lighting SYNERGY 6 PROFILE SPECS1

Output

  • 570 W pure white LED source (7000 K 25,130 Lumens output)
  • Native CRI > 70; Higher CRI (DMX-selectable)
  • CRI >90 (R9 >70) Average LED life: 50,000 hours (L70B10)

Optical Group

  • 109,000 Lux (4.6°@ 5 m)
  • 4.6° – 43° linear zoom with autofocus
  • Linear soft frost fi lter (Medium and Heavy frost filters available on demand)
  • Electronic dimmer / shutter / strobe (0.3 to 33.3 flash/sec)

Color Generation

  • Linear CMY Linear CTO (7,000 K – 3,000 K)
  • Gel filters emulation
  • 6-color wheel (5 color + HI-CRI)
  • Two-color generation
DTS Lighting SYNERGY 6 PROFILE SPECS2

Dynamic effects

  • Dynamove FX Engine
  • Virtual Animation Wheel
  • Customizable rotating 6-gobo wheel
  • Circular 24-facet rotating prism
  • Linear 6-facet rotating prism

Rotating Framing System

  • 4-blade rotating framing system
  • Real ‘curtain’ effect for each blade
  • 60° rotation for each blade (+/- 30°)
  • 90° full system rotation (+/- 45°)

Control

  • LCD graphic display + 4 soft keys (“auto-flip” and “key-lock” functions available)
  • Li-Fe backup battery for controlling display settings when the unit is not powered
  • Art-Net 4, sACN, RDM/DMX 512 protocols
  • 16-bit index for insertion and rotation of each blade
  • 16-bit index for blade system rotation
  • “Standard”, “Silent” and “Auto” operation modes
  • Noise level in “Standard” mode: 43dBA @ 1 m (normal operation, full power)
  • Internal operating system updatable via DTS firmware uploader dongle
DTS Lighting SYNERGY 6 PROFILE SPECS3

DMX

  • 44 DMX channels (default)
  • 53 DMX channels

Power Supply

  • 100-240 Vac 50/60 Hz
  • Power consumption: 750 W max
  • Power Factor: PF >0.90

Pan & Tilt

  • Pan: 540° 2.7 sec
  • Tilt: 240° 1.6 sec
  • Tri-phase stepper motor technology
  • 16-bit resolution
  • Pan / Tilt lock

Connections

  • DMX: XLR 3-pole and 5-pole In / Out panel connectors
  • Power supply: powerCON TRUE1 panel connector
  • Art-Net / sACN: etherCON RJ45 panel connector
DTS Lighting SYNERGY 6 PROFILE SPECS4

Circuits Protections

  • Overvoltage and overtemperature circuit protection

Temperature

  • Operating: -20° +45° C
  • Storage: -40° +85° C

Physical

  • IP20
  • Weight: 34.5 Kg (76 lbs)
  • Finishing: Black

Test and Certification

  • CE
DTS Lighting SYNERGY 6 PROFILE SPECS5

Accessories Included

  • Synergy EZ-shell – 560 x 490 x 670 mm – 2 pcs needed in each flightcase (code 0512K146.1)
  • 1 x Soft frost filter – already mounted on the unit (code 02SK0410)
  • 1 x PowerCON TRUE1 female cable connector (code 0520P066)
  • 1 x XLR 5 pins female cable connector (code 0508B147)
  • 1 x XLR 5 pins male cable connector (code 0508B148)
  • 2 x Kit Omega clamp “Fast Lock” (code 02K00549)

Accessories On Request

  • Medium frost filter (code 02SK0428)
  • Heavy frost filter (code 02SK0430)
  • Flightcase for 2 units (code 0521C073)
  • Aliscaf clamp for tube diameter 48-51 mm – max. load. 200 Kg (code 0521A033)
  • G-QUICK clamp Professional – max. load 100 Kg (code 0521A037)
  • Outdoor DMX cable 2 x 0,25 mm2 – Flame retardant (code 0509C158)
  • Safety cable 5 x 600 mm – max capacity load 60 Kg (code 0521A038)
  • DTS firmware uploader dongle (code 03.LA.206)
