DTS Katana LED

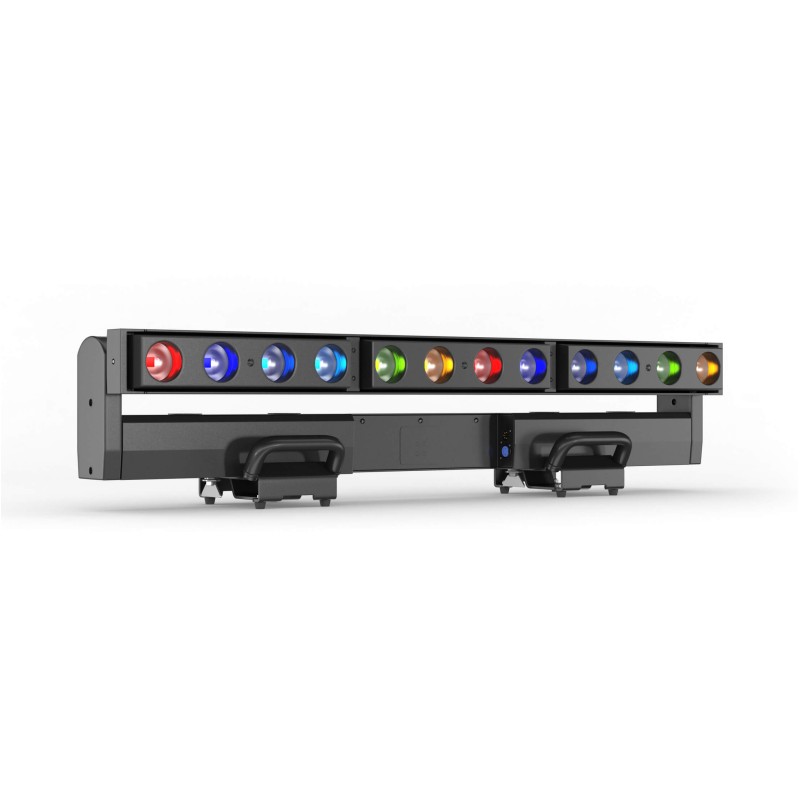

DTS Katana 12 x 20W RGBW LED Κινούμενη Μπάρα 3,5deg-30deg IP20

Ρωτήστε για τιμή

Διαθέσιμο 10 εως 30 ημέρες

Κωδικός (SKU): 115497

Κωδικός προϊόντος: DTS-03-LDR016-F

Λήψεις

Περιγραφή

RGBW light source with 12 x 20 W LEDs. Delivers high luminous output (up to 9,600 lumens) with pixel-to-pixel control, ideal for dynamic effects, graphics, and precise accents.
Motorized linear zoom 3.5° – 30°. Allows switching from narrow beams (“blade mode”) to wide projections, offering great flexibility for scenic applications.
Advanced color mixing. Supports 16 million colors and a wide range of uniform whites with adjustable color temperature from 2700 K to 8000 K, suitable for any context.
Control via DMX and RDM. Compatible with DMX512 and RDM protocols for remote management, featuring an integrated LED display and function keys for an intuitive user interface.
Selectable DMX modes. Offers 3 configurations: 16, 24, and 64 DMX channels, to adapt to simple or complex setups according to control requirements.
Motorized Tilt 184° with 16-bit resolution. Ensures smooth and precise vertical movements, perfect for dynamic effects and programmed positioning.
Universal power supply 100–240V. Operates on global power networks, with a maximum power consumption of 300 W and a power factor >0.95 for maximum energy efficiency.
Professional connections. Equipped with PowerCON TRUE1 In/Out connectors for power and 5-pin XLR In/Out connectors for DMX signal, suitable for professional environments.
Integrated electronic protections. Overvoltage and overheating protection circuits ensure device safety and long-term reliability.
Environmental resistance and build. Operates in a temperature range from -10 °C to +40 °C. IP20 protection rating, black finish, and a weight of 19.5 kg.

Με βάση την επιλογή σου, ενδέχεται να σε ενδιαφέρουν τα παρακάτω προϊόντα:

DTS Flightcase PRO 3 Katana

DTS Flightcase PRO 3 Θέσεων για Katana

Διαθέσιμο 10 εως 30 ημέρες

Ρωτήστε για τιμή

DTS G-Quick 100kg

DTS G-Quick Professional Γάντζος 100kg για Σωλήνα Φ38mm-Φ51mm

Διαθέσιμο 10 εως 30 ημέρες

Ρωτήστε για τιμή

DTS Συρματόσχοινο 60kg

DTS Συρματόσχοινο Ασφαλείας 60kg 3mm x 60cm με Carabiner

Διαθέσιμο 10 εως 30 ημέρες

Ρωτήστε για τιμή

DTS Dongle

DTS Dongle Firmware Uploader Καλώδιο Αναβάθμισης Λογισμικού

Διαθέσιμο 10 εως 30 ημέρες

Ρωτήστε για τιμή

DTS "Ω"Nick NRG / Katana / Brick / Minibrick

DTS Σύνδεσμος "Ω" Ταχείας Ασφάλισης για Nick NRG / Katana / Brick / Minibrick

Διαθέσιμο 10 εως 30 ημέρες

Ρωτήστε για τιμή

Applications

Live events and theatrical performances: Perfect for creating engaging atmospheres thanks to dynamic beams, precise pixel control, and vivid colors that enhance live shows.

TV studios and broadcast environments: Delivers excellent color rendering with adjustable color temperature, ideal for professional high-definition filming.

Indoor artistic installations: Features motorized zoom and a wide color range to create impactful scenic effects in exhibition spaces and creative setups.

Clubs and discos: Handles fast-paced environments with rapid movements and immersive light effects that amplify the energy of the venue.

Trade shows and temporary setups: A versatile solution for precise accent lighting, easily configurable even in setups with tight installation schedules.

Output

12 x 20 W Full Color (RGBW) LEDs
Pixel to pixel control
Lumen source: 9600 lm

Optical Group

Linear motorized zoom 3.5° (‘blade’ mode) – 30°

Color Generation

16 million colors
Wide palette of pure uniform whites with variable linear color temperature (2700 K – 8000 K)

Control

Multi-function 4-digit 7-segment LED display + 4 soft keys
Controlled via DMX 512 and RDM standard digital communication protocols
Firmware updatable via DTS firmware uploader dongle

DMX

24 DMX channels (default)
64 DMX channels
16 DMX channels

Tilt

Motorized Tilt 184°;
16-bit movement resolution

Power Supply

Electronic Wide-range 100-240 Vac 50/60 Hz;
Power consumption: 300 W max
Power Factor: PF >0.95

Connections

Power supply: PowerCON TRUE1 In/Out panel connectors
DMX: XLR 5-pole In/Out panel connectors

Temperature

Operating: -10° +40° C

Physical

Finishing: Black
Weight: 19.5 Kg (43 lbs)
IP rating: IP20

Circuits Protections

Overvoltage and overtemperature circuits protection

Test and Certification

Accessories Included

1 x PowerCON TRUE1 female cable connector (code 0520P066)
1 x PowerCON TRUE1 male cable connector (code 0520P067)
1 x XLR 5 pins female cable connector (code 0508B147)
1 x XLR 5 pins male cable connector (code 0508B148)
2 x Omega bracket with “Fast Lock” connection 1/4 turn (code 02K00467)
2 x Bracket for ground installation with handles and rubber feet – already mounted on the unit (code 02SK0296)

Accessories On Request

Flightcase for 3 units (code 0521C066)
Aliscaf clamp for tube diameter 48-51 mm – max. load. 200 Kg (code 0521A033)
G-QUICK clamp Professional – max. load 100 Kg (code 0521A037)
Safety cable – 3 x 600 mm – max. capacity load 30 Kg (code 0521A010)
DTS firmware uploader dongle (code 03.LA.206)
