Features

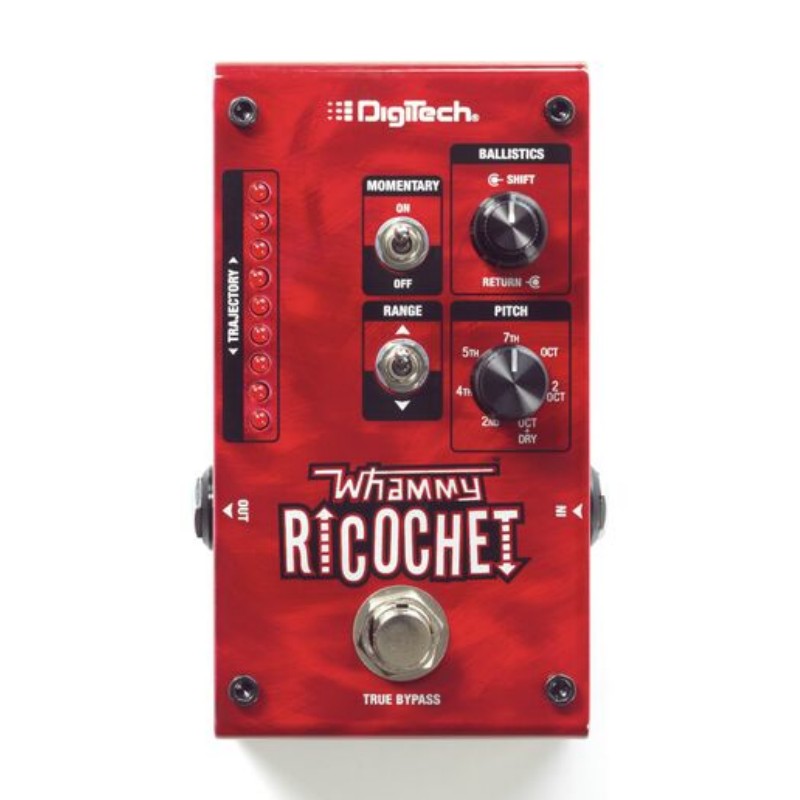

Stompbox Whammy

Whammy effects in a single stompbox pedal

7 Pitch Selections

7 pitch intervals shift across a 4 octave range

General Specifications

• Controls: Ballistics Control, Pitch Control, Range Switch, Momentary Switch, Effect On/Off
• Sample Rate: 44.1 kHz in classic mode, 22 kHz in chords mode
• Frequency Response: 20 Hz–16 kHz (classic mode), 20 Hz–11 kHz (chords mode)
• Signal to Noise Ratio: > -106dB (A weighted); ref = max level, 22 kHz bandwidth
• A/D/A Converter: 24-bit
• THD: 0.004% @ 1 kHz; ref = 1 dBu w/ unity gain
• Power Consumption: 2.1 Watts (235 mA typical @ 9 VDC)
• Power Requirements: 9V DC External Adapter (sold separately)
• Power Supply: PS0913DC-01 (US, JA, EU); PS0913DC-02 (AU, UK)
• Power Adapter Output 9V DC 1.3A: 9V DC 1.3A

Dimensions

• Length: 122mm
• Width: 76mm
• Height: 47mm
• Weight: 0.8lbs

Audio Output

• Output: 1/4" Unbalanced (Tip-Sleeve)
• Max Output Level: +10 dBu
• Output Impedance: 1 kΩ (Effect enabled or effect bypassed w/ Momentary switch on) True Bypass (Effect bypassed w/ Momentary switch off)

Audio Input

• Input: 1/4" Unbalanced (Tip-Sleeve)
• Max Input Level: +5 dBu
• Input Impedance: 1 MΩ (Effect enabled or effect bypassed w/ Momentary switch on) True Bypass (Effect bypassed w/ Momentary switch off)
