CHAUVET Professional Rogue R3X Wash

CHAUVET Professional Rogue R3X Wash Κινούμενη Κεφαλή Pixel Wash 37 x 25W LED RGBW IP20 - Μαύρο
Αμεσα Διαθέσιμο
Κωδικός (SKU): 120011
Κωδικός προϊόντος: CHAPR-ROGUER3XWASH

Περιγραφή

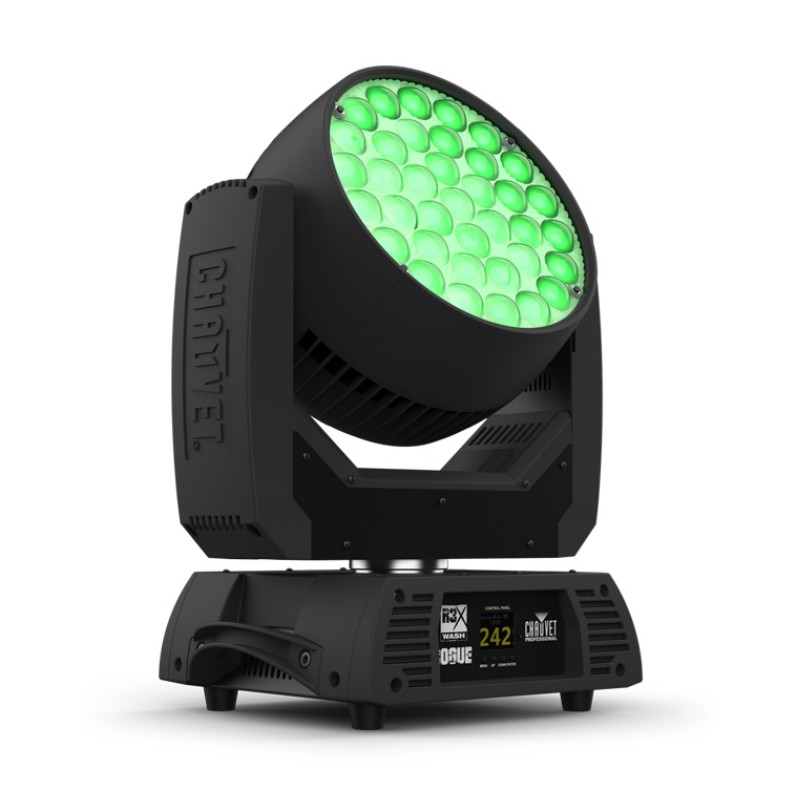

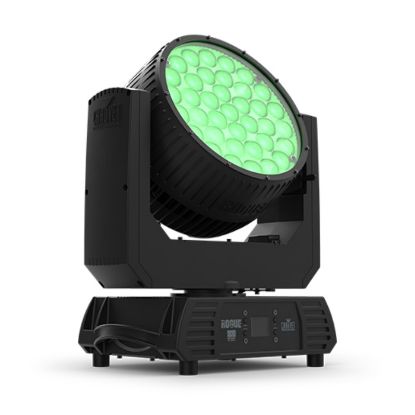

A feature-packed moving wash workhorse, the Rogue R3X Wash outputs a bright, evenly dispersed light from its 37 RGBW quad-LEDs, offering nine zones of pixel control and a versatile 12° to 49° zoom range.
Ideal for rental and production inventories, this fixture provides the durability and flexibility needed for concerts, corporate events, and a wide range of live stage applications.
• Delivers bright, consistent washes using thirty-seven high-power 25 W RGBW quad-LEDs.
• Provides a versatile 9.3° to 62.6° motorized zoom for broad coverage or tight beams.
• Creates dynamic pixel mapping effects with nine individually controllable zones of LEDs.
• Ensures smooth fades and flicker-free operation with 16-bit dimming and selectable PWM.
• Includes 3-pin and 5-pin DMX I/O and RDM for remote addressing and simplified setup.
• Features a calibrated 7500 K white point and a mode to match legacy fixture output.


Αναλυτικά


Rogue R3X Wash is a feature packed moving wash workhorse ideal for rental and production inventories.

It outputs a bright, evenly dispersed light and offers nine zones of LED control to pixel map its 37 (25 W) RGBW quad-LEDs.

A quick moving zoom range of 12° – 49° gives it the spread to cover large areas.

Smooth color mixing, simple and complex DMX channel profiles, and powerCON in and out round out the excellent features of this outstanding moving wash.

Chauvet Professional Rogue R3 Wash optical

Optical

  • Light Source: 37 LEDs (quad-color RGBW) 25 W, (1.5 A), 50,000 hours life expectancy
  • Color Temperature (range): 2,800 to 10,000 K
  • Beam Angle: 9.3° to 33.9°
  • Field Angle: 11.6° to 49.5°
  • Cutoff angle: 13.1° to 62.6°
  • Zoom Angle: 9.3° to 62.6°
  • Lumens – Source: 17,000
  • Lumens – Output: 13,440
  • Illuminance (9.3°): 18,260 lux @ 5 m
  • Illuminance (62.6°):1,556 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
Chauvet Professional Rogue R3 Wash Dynamic Effects

Dynamic Effects

  • Pan and Tilt: 540°/230°
  • Pan and Tilt Ranges: 180°, 360°, 540° Pan/90°, 180°, 230° Tilt
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Strobe Rate: 0 to 20 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Curves: 4
  • Built-in Automated Programs: Yes
  • Customizable Programs: No
  • Recall Custom Programs: No
Chauvet Professional Rogue R3 Wash Construction / Physical and certifications

Construction / Physical

  • Dimensions: 15.51 x 11.73 x 18.50 in (394 x 298 x 470 mm)
  • Weight: 38.5 lb (17.46 kg)
  • Exterior Color: Black
  • Housing Material: High-impact flame-retardant polymer

Certifications / Qualifications

  • CE, MET, FCC, UKCA
  • IP Rating: IP20, dry location
  • Noise Level (Idle): 40.1 dB(A) @ 1 m
  • Noise Level (Max): 43.1 dB(A) @ 1 m
  • Noise Level (Auto): 40.1 dB(A) @ 1 m
  • Noise Level (Eco): 41.5 dB(A) @ 1 m
  • Noise Level (Full): 44.8 dB(A) @ 1 m
Chauvet Professional Rogue R3 Wash control and connections

Control

  • Control Protocol: DMX, RDM
  • DMX Channels: 21, 27, 62, 71, 107
  • Modes/Personalities: 5 personalities

Connections

  • Power Connection: Edison (local) plug to Neutrik® powerCON®
  • Power Input: Neutrik® powerCON®
  • Power Output: Neutrik® powerCON®
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)
Chauvet Professional Rogue R3 Wash electrical

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 2 units @ 120 V; 3 units @ 208 V; 4 units @ 230 V
  • Power and Current: 661 W, 5.60 A @ 120 V, 60 Hz
  • Power and Current: 653 W, 3.136 A @ 208 V, 60 Hz
  • Power and Current: 650 W, 2.85 A @ 230 V, 50 Hz
Chauvet Professional Rogue R3 Wash included and Optional Accessories

What's Included

  • Rogue R3X Wash
  • Neutrik® powerCON® power cord
  • 2 Omega brackets with mounting hardware

Optional Accessories

  • Professional Clamps: CTC-50HC, CTC-50HCN
  • Safety Cable: SC-07
  • RigLink PowerCon cables
  • Rig Link DMX Cables
  • Flight Case: CP4CASER3W
  • UPLOAD 08
