Optical

• Light Source: 7 LEDs (quad-color RGBW) 25 W, (1.5 A), 50,000 hours life expectancy
• Color Temperature (range): 2800 to 10000 K
• Beam Angle: 8° to 30°
• Beam Angle: 7.9° to 35.5°
• Field Angle: 11.5° to 50.8°
• Cutoff Angle: 19.3° to 62.7°
• Zoom Range: 7.9° to 62.7°
• Lumens – Source: 4,000
• Lumens – Output: 2,455
• Illuminance (11°): 2,872 lux @ 5 m
• Illuminance (50.8°): 279 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

• Pan and Tilt: 540°/230°
• Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 230° tilt
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Strobe Rate: 0 to 20 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Built-in Automated Programs: Yes
• Customizable Programs: No
• Recall Custom Programs: No

Construction / Physical

• Dimensions: 7.36 x 10.43 x 13.94 in (187 x 265 x 354 mm)
• Weight: 13.6 lb (6.2 kg)
• Exterior Color: Black
• Housing Material: High-impact flame-retardant polymer

Certifications / Qualifications

• CE, MET, FCC, UKCA
• IP Rating: IP20, dry location

Control

• Control Protocol: DMX, RDM
• DMX Channels: 14, 15, 19 or 21
• Modes/Personalities: 4 personalities (14, 15, 19, 21)

Connections

• Power Connection: Edison (Local) plug to Neutrik® powerCON®
• Power Input: Neutrik® powerCON®
• Power Output: Neutrik® powerCON®
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 5 units @ 120 V; 8 units @ 208 V; 10 units @ 230 V
• Power and Current: 303 W, 2.34 A @ 120 V, 60 Hz
• Power and Current: 297 W, 1.35 A @ 208 V, 60 Hz
• Power and Current: 299 W, 1.20 A @ 230 V, 50 Hz

What's Included

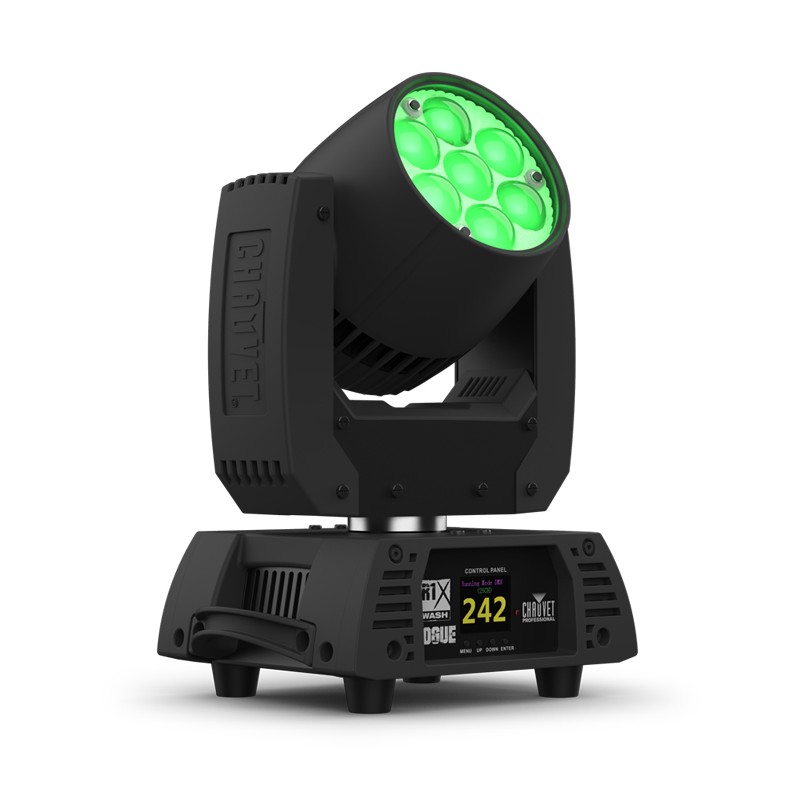

• Rouge R1Χ Wash
• Neutrik powerCON power cord
• Omega bracket with mounting hardware

Optional Accessories

• Professional Clamps: CTC-50HC, CTC-50HCN
• Safety Cable: SC-07
• Neutrik powerCON cables
• DMX Cables
• Flight Case: CP6CASER1W
• UPLOAD 08
