Optical

• Light Source: 7 LEDs (quad-color RGBW) 15 W, (980 mA), 50,000 hours life expectancy
• Color Temperature (range): 2,800 to 10,000 K
• Beam Angle: 8° to 30° Field Angle: 11° to 48°
• Zoom Angle: 11° to 48°
• Lumens – Source: 3,500
• Lumens – Output: 2,300
• Illuminance (11°): 2,790 lux @ 5 m
• Illuminance (48°): 261 lux @ 5 m
• PWM Frequency: 1,200 Hz

Dynamic Effects

• Pan and Tilt: 540°/230°
• Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 230° tilt
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Strobe Rate: 0 to 20 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Curves: 4
• Built-in Automated Programs: Yes
• Customizable Programs: No
• Recall Custom Programs: No

Construction / Physical

• Dimensions: 7.36 x 10.43 x 13.94 in (187 x 265 x 354 mm)
• Weight: 13 lb (5.9 kg)
• Exterior Color: Black
• Housing Material: High-impact flame-retardant polymer

Certifications / Qualifications

• CE, MET
• IP Rating: IP20, dry location

Control

• Control Protocol: DMX
• DMX Channels: 14, 15, 19 or 21
• Modes/Personalities: 4 personalities (14CH, 15CH, 19CH, or 21CH)

Connections

• Power Connection: Edison (Local) plug to Neutrik powerCON
• Power Input: Neutrik powerCON
• Power Output: Neutrik powerCON
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 10 units @ 120 V; 18 units @ 208 V; 21 units @ 230 V
• Power and Current: 161 W, 1.34 A @ 120 V, 60 Hz
• Power and Current: 141 W, 0.72 A @ 208 V, 60 Hz
• Power and Current: 139 W, 0.62 A @ 230 V, 50 Hz

What's Included

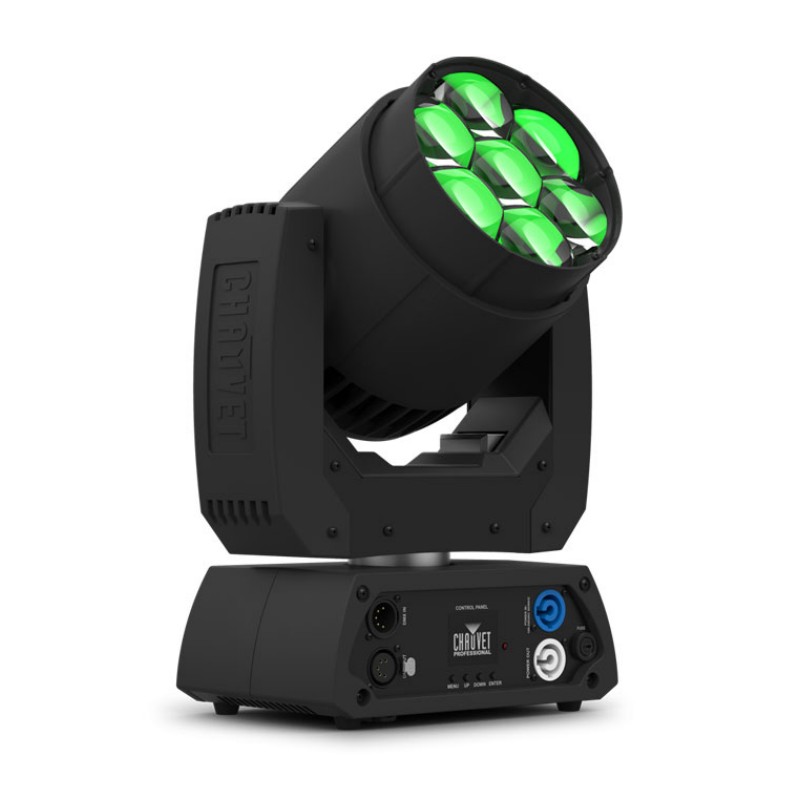

• Rouge R1 Wash
• Neutrik powerCON power cord
• Omega bracket with mounting hardware

Optional Accessories

• Professional Clamps: CTC-50HC, CTC-50HCN
• Safety Cable: SC-07
• Neutrik powerCON cables
• DMX Cables
• Flight Case: CP6CASER1W
• UPLOAD 08 software uploader
