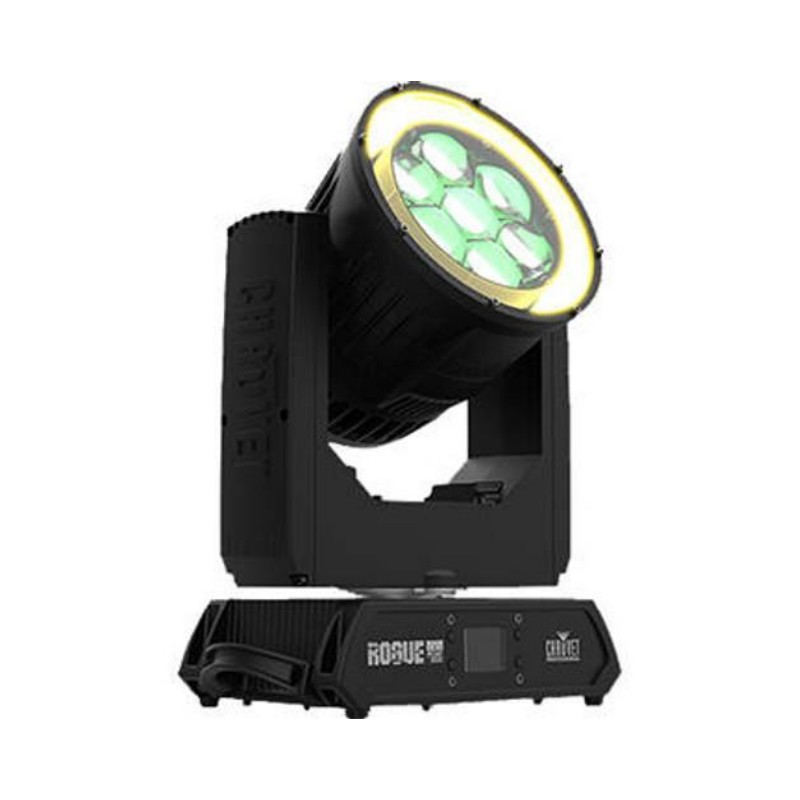

CHAUVET Professional Rogue Outcast 1 BeamWash

CHAUVET Professional Rogue Outcast 1 BeamWash Κινούμενη Κεφαλή Pixel Beam / Wash 7 X 45W LED RGBW IP65 - Μαύρο

Ρωτήστε για τιμή

Αμεσα Διαθέσιμο

Κωδικός (SKU): 122168

Κωδικός προϊόντος: CHAPR-Rogue Outcast 1 Bea

Λήψεις

Περιγραφή

Fully featured RGBW LED IP 65 rated yoke wash fixture with zoom and RGB LED ring 16-bit dimming of master dimmer as well as individual colors for smooth control of fades
7 RGBW LEDs, 45 W each
12 zone pixel-mappable RGB LED outer ring under a stealth filter for added effect possibilities
Prebuilt programs for outer LED ring with the ability to easily control dimming, rate, foreground and background colors
5-pin DMX input/output connections
Unique lens design for excellent color blending and tight beam effects
Extremely fast, smooth pan and tilt movement
RDM enabled for remote addressing and trouble shooting
Selectable PWM settings for camera operation
Zoom Range: 3.9° to 55.3° for maximum coverage
User selectable calibrated white for 7500 K at full output
6 distinct dimming modes for advanced control
Easy to read OLED display with simple, effective menu options
Simple and complex DMX channel profiles for programming versatility
USB-C port for uploading software

Με βάση την επιλογή σου, ενδέχεται να σε ενδιαφέρουν τα παρακάτω προϊόντα:

CHAUVET Professional UPLOAD 08

Αμεσα Διαθέσιμο

Ρωτήστε για τιμή

- 32 %

Chauvet Professional CTC-50G

CHAUVET PROFESSIONAL CTC-50G Γαντζος

Αμεσα Διαθέσιμο

38,22 € 25,99 €

- 25 %

Doughty T22001

Doughty Τ22001 Συρματόσχοινο Ασφαλείας με Πάχος 3mm & Μήκος 585mm με Καραμπίνερ Μ6 & SWL 15kg - Μαύρο

Αμεσα Διαθέσιμο

7,09 € 5,32 €

- 32 %

Chauvet Professional RIGLINKIPDMX3M

Chauvet Professional RIGLINKIPDMX3M Riglink 5-Pin Dmx Ip - 3M

Διαθέσιμο 10 εως 30 ημέρες

40,94 € 27,84 €

Αναλυτικά

Rogue Outcast 1 BeamWash is a lightweight, IP65 rated, LED Beam & Wash fixture enhanced with a pixel-mappable LED ring around it’s face.

A unique lens design developed for tight beam effects allows for a wide zoom range of 3.9° to 55.3° for maximum coverage.

Seven 45W RGBW LED’s combine excellent color mixing with a punchy output featuring 16-bit dimming and several dimming modes for advanced control.

The outer ring comprises of 12 pixel-mappable RGB LED zones underneath a smoked stealth filter.

Easily create eye-catching effects with prebuilt programs for the ring with the ability to control dimming, rate, foreground and background colors.

This compact fixture weighs only 20lbs and features a rugged IP65 casing that is proven to withstand all of the harshest elements.

Control as you see fit with multiple profiles with simple and advanced control modes compatible with DMX & RDM protocols.

Update software easily with an onboard USB-C port.

Optical

Field Angle: 5.9° to 49.8°
Cutoff Angle: 6.7° to 55.3°
Zoom Range: 3.9° to 55.3°
Lumens – Source: 5,900
Lumens – Output: 4,073
Illuminance (3.9°): 15,308 lux @ 5 m
Illuminance (55.3°): 473 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

Pan and Tilt: 540°/260°
Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 260° tilt
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 20 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Curves: 4
Built-in Automated Programs: Yes
Customizable Programs: yes
Recall Custom Programs: No

Construction / Physical

Dimensions: 11.92 x 7.58 x 15.75 in (303 x 192 x 391 mm)
Weight: 20.2 lb (9.16 kg)
Exterior Color: Black
Housing Material: Magnesium aluminum diecast, high impact, flame-retardant polymer

Certifications / Qualifications

CE, MET, FCC, UKCA
IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
Maximum Exterior Surface Temperature (Tc): 80° C / 176° F
Maximum Ambient Temperature (ta) 45° C / 113° F

Control

Control Protocol: DMX, RDM
DMX Channels: 15, 24, 30, 64, 111 or 135
Modes/Personalities: 6 personalities (15, 24, 30, 64, 111, 135)

Connections

Power Connection: Edison plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin XLR
Cable Length (power): 5 ft (1.5 m)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 3 units @ 120 V; 6 units @ 208 V; 7 units @ 230 V
Power and Current: 385 W, 3.25 A @ 120 V, 60 Hz
Power and Current: 376 W, 1.92 A @ 208 V, 60 Hz
Power and Current: 372 W, 1.69 A @ 230 V, 50 Hz

Chauvet Professional Rogue Outcast 1 BeamWash included and Optional Accessories

What's Included

Rogue Outcast 1 BeamWash
Seetronic Powerkon IP65 power cord
(2) Omega brackets with mounting hardware

Optional Accessories

Professional Clamps: CTC-50HC, CTC-50HCN

Safety Cable: SC-07

IP Rated Seetronic® Powerkon Extensions

DMX Cables

UPLOAD 08 software uploader
