CHAUVET Professional Ovation F-915VW

CHAUVET Professional Ovation F-915VW Φωτιστικό Fresnel Wash 89 x 3W LED Ρυθμιζόμενο Λευκό RGBL IP20 - Μαύρο

Ρωτήστε για τιμή

Αμεσα Διαθέσιμο

Κωδικός (SKU): 118353

Κωδικός προϊόντος: CHAPR-Ovation F-915VW

Λήψεις

Περιγραφή

Variable white LED Fresnel lighting fixture for theatre, film and production
Soft and even field of light
Smooth, motorized zoom from 16° to 42° beam angle
Color Temperature Presets from 2800 K to 8000 K with high CRI and CQS
Beautiful 16-bit dimming
Proprietary LED engine delivers tremendous, equal output at all color temperatures
Easy to use on board control of color temperature, zoom and dimming
+/- Green adjustment via DMX or on-board control
Independent color control over the 6-color engine when a splash of color is needed
RDM (Remote Device Management) for added flexibility
Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
Virtually silent operation for use in studio and theatre applications

Με βάση την επιλογή σου, ενδέχεται να σε ενδιαφέρουν τα παρακάτω προϊόντα:

- 32 %

Chauvet Professional CTC-50G

CHAUVET PROFESSIONAL CTC-50G Γαντζος

Αμεσα Διαθέσιμο

38,22 € 25,99 €

- 32 %

Chauvet Professional DF60X1D

Διαθέσιμο 10 εως 30 ημέρες

40,94 € 27,84 €

Chauvet Professional F7.5" Barndoor

CHAUVET PROFESSIONAL F7.5" BARNDOOR FITS OVATION F165/265/915 V2

Διαθέσιμο 10 εως 30 ημέρες

Ρωτήστε για τιμή

- 32 %

Chauvet Professional RIGLINKDMX3M

Chauvet Professional RIGLINKDMX3M Riglink 5-Pin Dmx - 3M

Διαθέσιμο 10 εως 30 ημέρες

38,22 € 25,99 €

Αναλυτικά

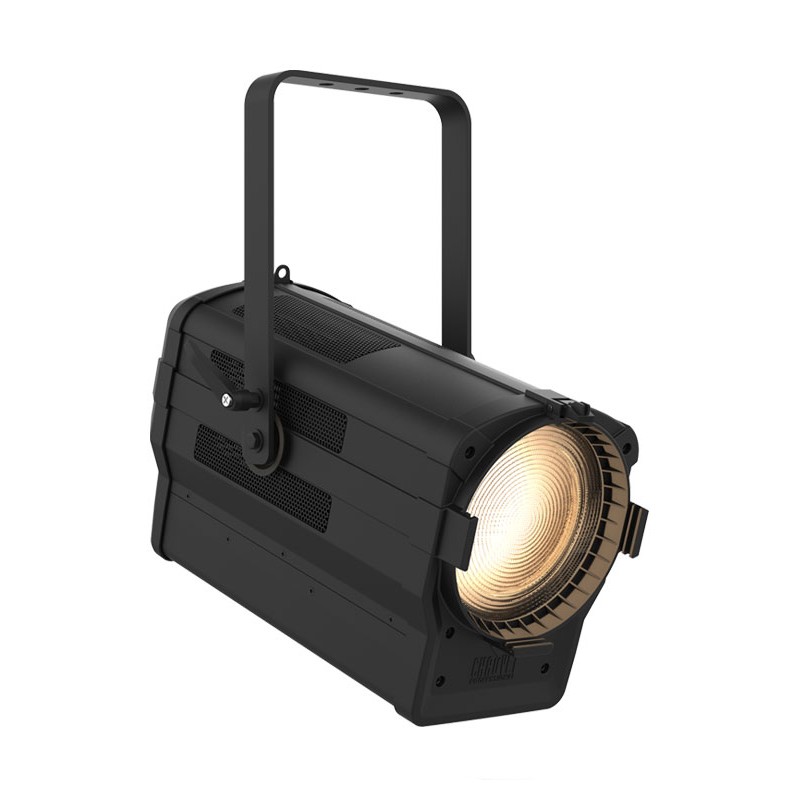

Ovation F-915VW is a high-power, variable white Fresnel-style fixture that utilizes our unique 6-color LED system.

This fixture projects a bright, beautifully soft field of light in nearly any temperature of white with high CRI and CQS making it ideal for theatres and TV studios.

Each Color Temperature can be further adjusted for +/- green and a motorized zoom with a 17° – 85° field range allows you to add light where it is needed.

The Color Temperature and hue along with zoom and output can be controlled via DMX or on-board dials.

Optical

Light Source: 89 LEDs (6 red, 15 orange-red, 8 green, 12 blue, 16 royal blue, 32 lime) 3 W, (960 mA), 50,000 hours life expectancy
Color Temperature (range): 2800 to 8000 K
CRI: 88-92
Beam Angle: 17° to 54°
Field Angle: 30° to 85°
Zoom Range: 17° to 85°
Lumens (30°): 4,143
Lumens (85°): 6,792
Illuminance (30°): 1,748 lux @ 5 m
Illuminance (85°): 414 lux @ 5 m
Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

Dynamic Effects

Dimmer: Electronic
Zoom: Motorized
Strobe Rate: 0 to 27 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: No

Construction / Physical

Dimensions: 22.41 x 12.59 x 10.82in (569.44 x 320 x 275 mm)
Weight: 18.6 lb (8.5 kg)
Exterior Color: Black
Housing Material: Aluminum alloy, Aluminum die-cast

Certifications / Qualifications

CE, MET, FCC, UKCA
IP Rating: IP20, dry location
Temperature (startup): -4 °F to 113 °F (-20 °C to 45 °C)
Temperature (operating): -22 °F to 113 °F (-30 °C to 45 °C)

Control

Control Protocol: DMX, RDM
DMX Channels: 1, 4, 6, 7, 9, 13, 16 or 18
Modes/Personalities: 8 personalities (1, 4, 6, 7, 9, 13, 16, 18)

Connections

Power Connection: Edison (local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 5 units @ 120 V; 8 units @ 208 V; 9 units @ 230 V
Power and Current: 271 W, 2.3 A @ 120 V, 60 Hz
Power and Current: 262 W, 1.433 A @ 208 V, 60 Hz
Power and Current: 258 W, 1.209 A @ 230 V, 50 Hz

Chauvet Professional Ovation F-915VW included and Optional Accessories

What's Included

Ovation F-915VW
Seetronic Powerkon IP65 power cord
Gel frame (7.5 in/191 mm accessories)

Optional Accessories

Professional Clamps: CTC-50HC, CTC-50HCN
TRUE1 Style Power Extensions Cables
3-pin or 5-pin DMX Cables
Color Blending Filters: DF60X1D, DF20D
Ovation F 7.5” Barndoor V2
Ovation 8" Pole Operated Yoke

Πληροφορίες και λήψεις

Manual

Manual
