Optical

• Light Source: 1 LEDs (CW) 1250 W, (4 A), 7500 K, 50,000 hours life expectancy
• Color Temperature (at full): 6895 K
• CRI: 71.5 CRI with CRI Filter: 91
• Front Lens Diameter: 188 mm
• Beam Angle: 6.2° to 48.7°
• Field Angle: 8.4° to 54.1°
• Cutoff Angle 8.8° to 58.3°
• Zoom Range: 6.4° to 58.3°
• Lumens – Source: 94,000
• Lumens – Output: 60,756
• Illuminance (6.2°) 127,159lux @ 5 m
• Illuminance (58.3°) 4,019lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

• Pan and Tilt: 540°/270°
• Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
• Colors: 6 (including CRI and CTB filters) + white, split colors, continuous scroll at variable speeds
• Colors: CMY flags, CTO flag
• Gobos (1): 6 + open (glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobos (2): 6 + open (glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobo Size: Gobo Wheel 1 (rotating): 30 mm (outside), 25 mm (image), 1.1 mm (max. thickness)
• Gobo Size: Gobo Wheel 2 (rotating): 30 mm (outside), 25 mm (image), 1.1 mm (max. thickness)
• Framing Shutters: 4 Blades, each with dual axis movement, Full blackout Framing Shutter rotation: +/- 60° rotation
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Focus: Motorized
• Frost: Motorized
• Iris: Motorized
• Animation: Motorized
• Prism: 5 Linear Facets, motorized, rotating
• Prism: 5 Circular Facets, motorized, rotating
• Built in Sky Tracker Mode: Yes
• Strobe Rate: 0 to 20 Hz
• Move-in-Black: Yes
• Dim Curves: 4

Construction / Physical

• Dimensions: 18.3 x 11.93 x 32.91 in (465 x 303 x 836 mm)
• Weight: 102.5 lb (46.5kg)
• Exterior Color: Black
• Housing Material: Aluminum diecast, High-impact flame-retardant polymer, Steel

Certifications / Qualifications

• CE, MET, FCC, CB, UKCA
• IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
• Noise Level (Idle): 38.5 dB(A) @ 1 m
• Noise Level (Max): 43.8 dB(A) @ 1 m
• Noise Level (Auto): 43.3 dB(A) @ 1 m
• Noise Level (Full): 50.5 dB(A) @ 1 m T
• emperature (Ambient): 4 °F to 113 °F (-20 °C to 45 °C)

Control

• Control Protocol: Art-Net, DMX, RDM, W-DMX, sACN
• DMX Channels: 38 or 55
• Art-Net Channels: 38 or 55
• Modes/Personalities: 2 personalities (38, 55)

Connections

• Power Connection: Seetronic Powerkon IP65
• Power Input/Output: Seetronic Powerkon IP65
• Data Connectors: 5-pin IP rated XLR, Neutrik IP rated RJ45 Connectors in/out
• Cable Length (power): 5 ft (1.5 m)

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 1780 W, 15.07 A @ 120 V, 60 Hz
• Power and Current: 1740 W, 8.70 A @ 208 V, 60 Hz
• Power and Current: 1760 W, 7.79 A @ 230 V, 50 Hz
• Breaker Size: 25 A, 750 V

What's Included

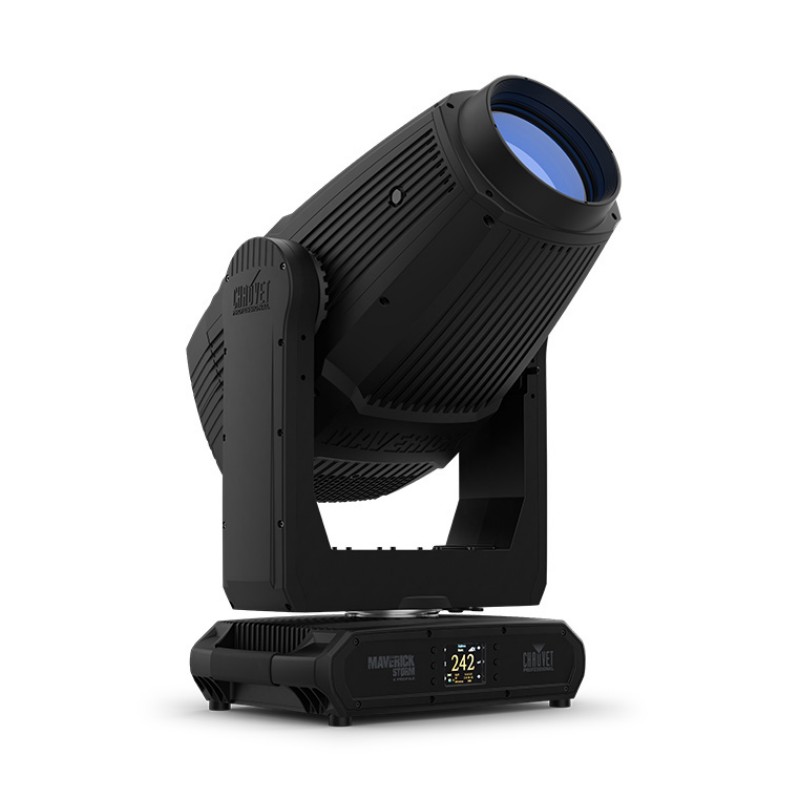

• Maverick Storm 4 Profile
• Seetronic Powerkon IP65 power cord to Bare end
• (2) 140-D Omega bracket with mounting hardware

Optional Accessories

• Professional Clamps : CTC-50HC, CTC-50HCN
• Safety Cable: SC-07
• DMX Cables
• IP Rated Seetronic® Powerkon Extensions
• UPLOAD 08 software uploader
• Micro T-1 TRX G65 WDMX Transceiver
• FLIGHT CASE TBA
