Optical

• Light Source: 1 LEDs (CW) 580 W, (4.2 A), 7500 K, 50,000 hours life expectancy
• Color Temperature (at full): 6963 K
• CRI: 71.3
• CRI with CRI Filter: 89.1
• Front Lens Diameter: 127 mm
• Beam Angle: 6.3° to 42.6°
• Field Angle: 7.9° to 54.7°
• Cutoff Angle 8.2° to 58.6°
• Zoom Range: 5.5° to 58.6°
• Lumens – Source: 35,000
• Lumens – Output: 28,534
• Illuminance (6.3°) 71,933 lux @ 5 m
• Illuminance (58.6°) 2,580 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

• Pan and Tilt: 540°/270°
• Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
• Colors: 7 (including CRI and CTB filters) + white, split colors, continuous scroll at variable speeds
• Colors: CMY flags, CTO flag
• Gobos (1): 7 + open (glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobos (2): 9 + open (glass), continuous scroll at variable speeds
• Gobo Size: Gobo Wheel 1 (rotating): 25.5 mm (outside), 18 mm (image), 1.1 mm (max. thickness)
• Framing Shutters: 4 Blades, each with dual axis movement, Full blackout
• Framing Shutter rotation: +/- 60° rotation
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Focus: Motorized
• Frost: Motorized
• Iris: Motorized
• Prism: 5 Facets, motorized, rotating
• Strobe Rate: 0 to 20 Hz
• Move-in-Black: Yes
• Dim Curves: 4

Construction / Physical

• Dimensions: 9.92 x 15.28 x 27.52 in (252 x 388 x 699 mm)
• Weight: 67.0 lb (30.4 kg)
• Exterior Color: Black
• Housing Material: Aluminum diecast, High-impact flame-retardant polymer, Steel

Certifications / Qualifications

• CE, MET, FCC
• IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
• Noise Level (Idle): 34.4 dB(A) @ 1 m
• Noise Level (Max): 42.4 dB(A) @ 1 m
• Noise Level (ECO): 41.3 dB(A) @ 1 m
• Noise Level (Auto): 41.9 dB(A) @ 1 m
• Noise Level (Full): 51.1 dB(A) @ 1 m
• Temperature (Ambient): 4 °F to 113 °F (-20 °C to 45 °C)

Control

• Control Protocol: Art-Net, DMX, RDM, W-DMX, sACN
• DMX Channels: 32 or 48
• Art-Net Channels: 32 or 48
• Modes/Personalities: 2 personalities (32, 48)

Connections

• Power Connection: Seetronic Powerkon IP65
• Power Input/Output: Seetronic Powerkon IP65
• Data Connectors: 5-pin IP rated XLR, Neutrik IP rated RJ45 Connectors in/out
• Cable Length (power): 5 ft (1.5 m)

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 800 W, 6.82 A @ 120 V, 60 Hz
• Power and Current: 779 W, 3.77 A @ 208 V, 60 Hz
• Power and Current: 763 W, 3.41 A @ 230 V, 50 Hz
• Breaker Size: F15 A, 250 V

What's Included

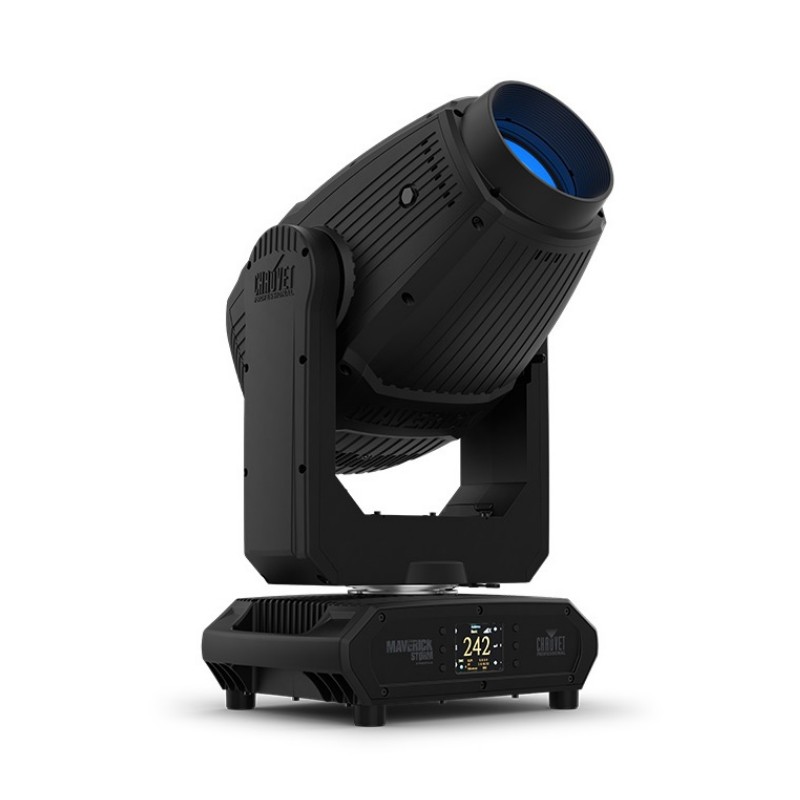

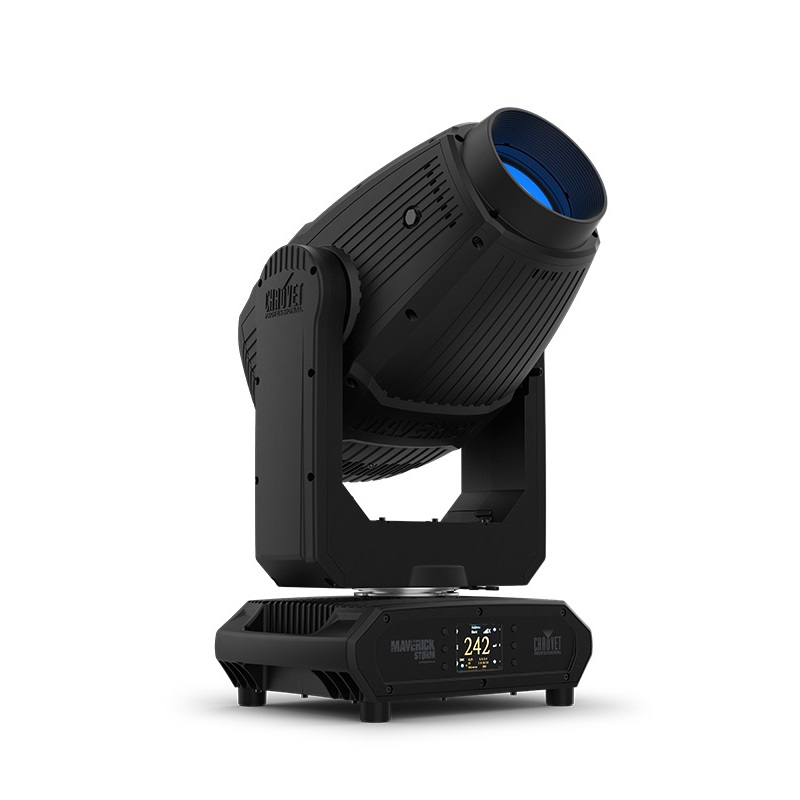

• Maverick Storm 2 Profile
• Seetronic Powerkon IP65 power cord to Edison
• Omega bracket with mounting hardware

Optional Accessories

• Professional Clamps : CTC-50HC, CTC-50HCN
• Safety Cable: SC-08
• DMX Cables
• IP Rated Seetronic® Powerkon Extensions
• UPLOAD 08 software uploader
• Micro T-1 TRX G5 WDMX Transceiver
• FLIGHT CASE TBA
