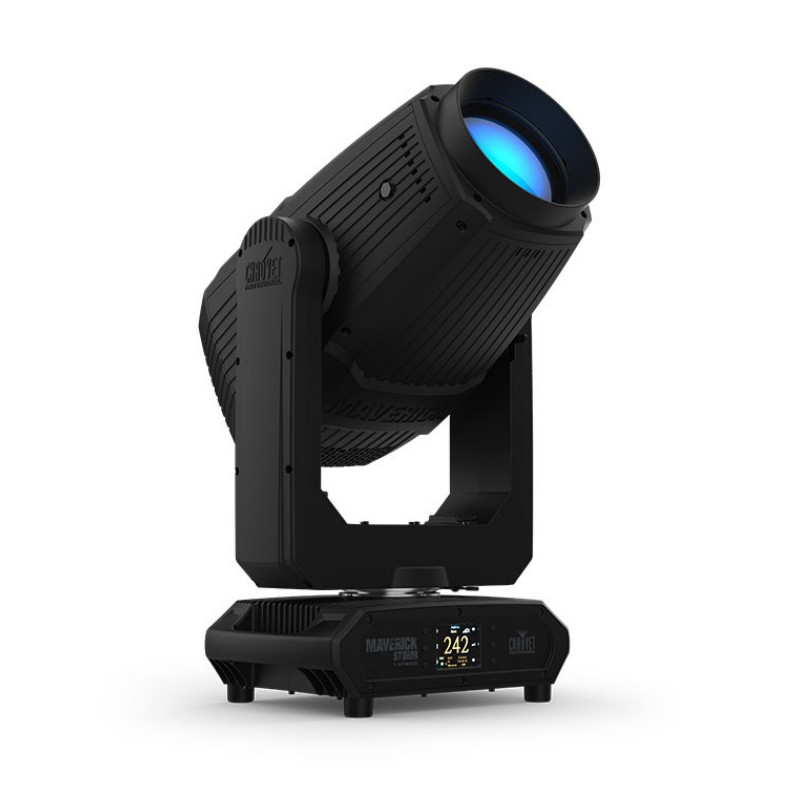

CHAUVET Professional Maverick Storm 1 Hybrid

CHAUVET Professional Maverick Storm 1 Hybrid Κινούμενη Κεφαλή Spot / Beam / Wash 420W Λάμπα Υψηλής Πίεσης CMY IP65 - Μαύρο

Ρωτήστε για τιμή

Διαθέσιμο 10 εως 30 ημέρες

Κωδικός (SKU): 125577

Κωδικός προϊόντος: CHAPR-MAVERICKSTORM1HYBRI

Λήψεις

Περιγραφή

A high-output, IP65-rated hybrid moving head fixture that combines beam, spot, and wash capabilities, featuring full CMY color mixing and an extensive package of professional effects.
Ideal for large-scale touring, concert, and outdoor event applications requiring a powerful, versatile, and weatherproof all-in-one lighting fixture.
• Powered by a 420W Osram 7700K lamp for intense, stadium-scale output.
• Offers an expansive zoom range for tight beams, crisp spots, and smooth wash effects.
• Equipped with dual gobo wheels and two stackable prisms for dynamic layered projections.
• Achieves a vast color spectrum with a full CMY system and a 14-position color wheel.
• Built with a rugged, IP65-rated housing for dependable performance in all weather conditions.
• Supports DMX, Art-Net, sACN, and W-DMX for seamless integration into professional control systems.

Με βάση την επιλογή σου, ενδέχεται να σε ενδιαφέρουν τα παρακάτω προϊόντα:

- 32 %

CHAUVET Professional RIGLINK Combo 3M

CHAUVET Professional RIGLINK Tr1 Dmx Combo Ip - 3M

Διαθέσιμο 10 εως 30 ημέρες

128,29 € 87,23 €

- 25 %

Doughty T2844001

Doughty Τ2844001 Συρματόσχοινο Ασφαλείας με Πάχος 4mm & Μήκος 600mm με Καραμπίνερ Μ8 & SWL 36kg - Μαύρο

Αμεσα Διαθέσιμο

35,44 € 26,59 €

CHAUVET Professional CP Rack

Αμεσα Διαθέσιμο

Ρωτήστε για τιμή

Αναλυτικά

Maverick Storm 1 Hybrid brings the latest Maverick series IP65 technology together with an advanced optical system designed to optimize output from its Osram 420W 7700K source.

This combination Beam/Spot/Wash fixture delivers stadium-scale output and CMY color mixing that produces the boldest reds, greens and blues while perfectly matching its fellow Mavericks in the rig.

Its linear zoom smoothly delivers precise coverage in both projection modes, from tightly focused beams to crisp even spots, offering a zoom range of 0.9° to 23.7° in Beam mode and 1.1° to 36° in Spot mode.

This hybrid houses a full arsenal of features: static and rotating gobo wheels, stackable independent prisms, animation wheel and a heavy frost to shift to a distinctive wash.

Maverick Storm 1 Hybrid speaks DMX, ArtNet, sACN, RDM and W-DMX.

Optical

Light Source: Osram Sirius HRI 420 W lamp, 7700 K (Color Temp), up to 4,500 hours life expectancy
Color Temperature (at full): 6,995 K
Front lens diameters: 174mm
Lumens: 30,978 lm
Spot Mode:

Beam Angle: 1.3° to 17.7°

Field Angle: 2.2° to 31.9°

Cutoff Angle: 2.6° to 40.8°

Zoom Range: 1.3° to 40.8°

Illuminance: (2.2°) 1,075,418 lux @ 5 m

Illuminance: (31.9°) 5,422 lux @ 5 m

Beam Mode:

Beam Angle: 0.8° to 7.4°°

Field Angle: 1.5° to 19.9°

Cutoff Angle: 1.9° to 25.6°

Zoom Range: 0.8° to 25.6°

Illuminance: (1.5°) 226,074 lux @ 15 m

Illuminance: (19.9°) 2,144 lux @ 15 m

Wash Mode:

Beam Angle: 3.6° to 16.6°

Field Angle: 6.7° to 30.1°

Cutoff Angle: 9.2° to 32.2°

Zoom Range: 3.6° to 32.2°

Illuminance: (30.1°) 3,005 lux @ 5 m

Illuminance: (6.7°) 71,522 lux @ 5 m

Dynamic Effects

Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
Colors: 14 + white, split colors, continuous scroll at variable speeds
Colors: CMY flags
Gobos (1): 9 + open (1 empty slot + 8 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobos Static: 17 + open (17 metal), rotating, continuous scroll at variable speeds
Gobo Size (1): Gobo Wheel 1 (rotating): 16 mm (outside), 10 mm (image), 1.1 mm (max. thickness)
Animation Wheel: 1
Dimmer: Motorized
Shutter/Strobe: Motorized
Zoom: Motorized
Focus: Motorized
Frost: Motorized
Prism (1): 6 Facets, motorized, rotating
Prism (2): 8 Facets, motorized, rotating
Move-in-Black: Yes
Built in Sky Tracker Mode: Yes

Construction / Physical

Dimensions: 388 x 274 x 755 mm
Weight: 29,2 kg
Exterior Color: Black
Housing Material: Aluminum die-cast, High-impact flame-retardant polymer, Steel

Certifications / Qualifications

CE, MET, FCC, CB, UKCA
IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve
Noise Levels:

Idle: 40.0 dB(A) @ 1 m

Max: 41.2 dB(A) @ 1 m

Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

Control

Protocol(s): Art-Net, sACN, RDM, DMX, WDMX
DMX Channels: 24 or 29
Art-Net/sACN Channels: 24 or 29
Modes/Personalities: 2 personalities (24, 29)

Connections

Power Connection: Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Data Connectors: 5-pin IP rated XLR, Neutrik IP rated RJ45 Connectors in/out
Cable Length (power): 5 ft (1.5 m)
Software Connection: Type-C USB

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 660 W, 5.540 A @ 120 V, 60 Hz
Power and Current: 648 W, 3.124 A @ 208 V, 60 Hz
Power and Current: 647 W, 2.800 A @ 230 V, 50 Hz

Chauvet Professional Maverick Storm 1 Hybrid included and Optional Accessories

What's Included

Maverick Storm 1 Hybrid
Seetronic Powerkon IP65 power cord to Edison Plug
(2) 140 Omega brackets with mounting hardware

Optional Accessories

Clamps
Neutrik powerCON cables
Neutrik etherCON cables
5 Pin DMX Cables
Flight Cases
