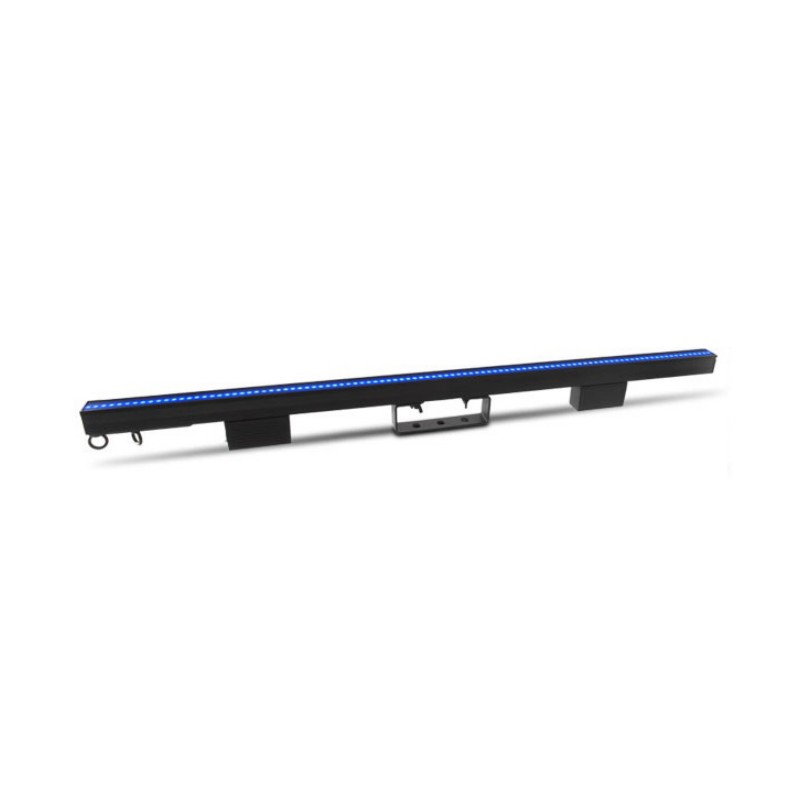

CHAUVET Professional EPIX Strip IP

CHAUVET Professional EPIX Strip IP Lighting Bar Pixel Wash LED RGB IP65 - Black

Call for pricing

Available 10 to 30 days

Product code (SKU): 118326

Product code: CHAPR-EPIX Strip IP

Downloads

Description

Pixel-mapping 1-meter 100 x 1 IP65 rated LED strip for showing video and/or motion graphics
Includes square milky filter (installed) for diffused output, round milky filter (included) for diffused output, and black stealth filter (included) for high contrast.
Uses specialized LED dimming control via S-PWM (scrambled PWM), which enhances on-camera performance.
Versatile control options include Art-Net, Kling-Net, and sACN (streaming ACN) to support the touring, rental, and installation markets
Reduce programming time and increase application by using the alternate personalities of 7, 8 channels, 5, 10, 20, and 50 sections, or use the Pixel personality for use with video servers
Increase viewing angle by using the included dome accessory
EPIX Drive 2000 IP required for operation

Based on your selection, you may be interested in the following items

- 32 %

Chauvet Professional RIGLINKXLR43M

Chauvet Professional RIGLINKXLR43M Riglink 4-Pin Xlr Ip - 3M

Available 10 to 30 days

60,05 € 40,83 €

Αναλυτικά

ÉPIX Strip IP is a dynamic IP65 outdoor-rated, pixel-mapping 1-meter LED strip fixture featuring 100 LEDs in a row.

Ideal for festivals, concert touring, and installations, this versatile fixture comes with dome and flat accessories and stunning pre-built content to allow you to easily configure and program shows in minutes with minimum time/effort for sizzling looks.

Power and control it through our ÉPIX Drive 2000 IP on Art-Net, Kling-Net, or sACN (streaming ACN).

Optical

Light Source: 100 LEDs (tri-color RGB) SMD 5050, 50,000 hours life expectancy
Viewing Angle (with installed square milky filter): 160°
Viewing Angle (with optional dome filter): 160°
Illuminance – open: 8,640 NITS
Illuminance - square milky filter (installed): 2,470 NITS
Illuminance - black stealth filter (included): 1,455 NITS
Illuminance - round milky filter (optional): 1,360 NITS
Pixels: 100 x 1
Pixel Pitch: 10 mm
Refresh Rate: 4800 Hz (S-PWM)

Construction / Physical

Dimensions (with installed square milky filter ): 39.37 x 3.93 x 1.33 in (1000 x 100 X 34 mm)
Dimensions: (with included black stealth filter) 39.37 x 3.46 x 1.33 in (1000 x 88 x 34 mm)
Dimensions (with optional dome filter): 39.37x 5.03 x 1.77 in (1000 x 128 X 45 mm)
Weight: 6 lb (2.7 kg)
Exterior Color: Black
Housing Material: Aluminum

Connections

Data Connectors: 4-pin XLR
Physical Linking: 10 inline ÉPIX Strip IP per port of Drive 2000 IP
Total max. cable length (shielded cables) between ÉPIX Drive 2000 IP and last ÉPIX IP fixture: 210 ft (64 m)
Max. cable length (shielded cables) between ÉPIX Drive 2000 IP and first ÉPIX IP fixture: 65 ft (20 m)
Max. cable length (shielded cables) between ÉPIX IP fixtures: 60 ft (18 m)
Total max. cable length (unshielded cables) between ÉPIX Drive 2000 IP and last ÉPIX IP fixture: 300 ft (91 m)
Max. cable length (unshielded cables) between ÉPIX Drive 2000 IP and first ÉPIX IP fixture: 150 ft (45 m)
Max. cable length (unshielded cables) between ÉPIX IP fixtures: 100 ft (30 m)

Control

Control Protocol: Art-Net, Kling-Net, sACN
Control Channels (Art-net, sACN): 7, 8, 15, 30, 75, 150 or 300

Electrical

Power and Current: 35 W, 0.292 A @ 120 V, 60 Hz
Power and Current: 44 W, 0.210A @ 208 V, 60 Hz
Power and Current: 44 W, 0.195 A @ 230 V, 50 Hz

Certifications / Qualifications

CE, MET
IP Rating: IP65, temporary outdoor/wet use
Temperature (ambient): -4 °F to 113 °F (-20 °C to 45 °C)
MET Listing Number: E113093-1101
US Safety: UL 8750, UL 1573
Canadian Safety: CSA C22.2 No. 250.13-12, CSA C22.2 No. 166

Chauvet Professional ÉPIX Strip IP included and Optional Accessories

What's Included

ÉPIX Strip IP 50
Square milky filter (installed)
Round milky filter (included in box)
Black stealth filter (included in box)

Optional Accessories

ArKaos Media Master Express™ + KN software
ÉPIX Strip Tour
ÉPIX Bar Tour
4PINIPEXT16IN
4PINIPEXT5FT
4PINIPEXT50FT
Seetronic Powerkon IP65 cables
Seetronic Etherkon IP65 cables
