Optical

• Light Source: 8 LEDs (quad-color RGBW) 45 W, (3.0 A),50,000 hours life expectancy
• Color Temperature: 6121 K (calibrated white)
• CRI: 64
• Beam Angle: 3.5° to 30.8°
• Beam Angle single cell: 4° to 29.9°
• Field Angle: 5.2° to 42.7°
• Field Angle single cell: 5.4° to 42.3°
• Cutoff Angle: 8.5° to 47.3°
• Cutoff Angle single cell: 6.1° to 45.5°
• Zoom Range: 3.6° to 47.3°
• Zoom Range single cell: 4° to 45.5°
• Lumens: 3,503
• Illuminance (3.6°): 12,109 lux @ 5 m
• Illuminance (47.3°): 563 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

• Tilt: 200°
• Tilt Ranges: 60°, 180°, 200° tilt
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Strobe Rate: 0 to 20 Hz
• Dim Modes: 2
• Dim Curves: 4

Construction / Physical

• Dimensions: 19.69 x 5.47 x 10.75 in (500 x 139 x 273 mm Weight: 25.2 lb (11.5 kg)
• Exterior Color: Black
• Housing Material: Aluminum alloy, Aluminum die-cast, High-impact flame-retardant polymer

Certifications / Qualifications

• CE, MET, FCC
• IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

Control

• Control Protocol: Art-Net, Kling-Net, DMX, sACN, RDM
• DMX Channels: (Single Mode) 19, 51, 89 or 105, (Dual Mode LED) 24,32,64, (Dual Mode Movement) 25,19,7)
• Art-Net Channels: (Single Mode) 19, 51, 89 or 105, (Dual Mode LED) 24,32,64, (Dual Mode Movement) 25,19,7)
• Modes/Personalities: 10 personalities (Single Mode) 19, 51, 89 or 105, (Dual Mode LED) 24,32,64, (Dual Mode Movement) 25,19,7)

Connections

• Power Connection: Bare end to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Data Connectors: 5-pin IP rated, Seetronic IP rated RJ45 connectors in/out
• Cable Length (power): 5 ft (1.5 m)

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 3 units @ 120 V, 5 units @ 208 V, 6 units @ 230 V
• Power and Current: 422 W, 3.497 A @ 120 V, 60 Hz
• Power and Current: 409 W, 2.013 A @ 208 V, 60 Hz
• Power and Current: 407 W, 1.830 A @ 230 V, 50 Hz

What's Included

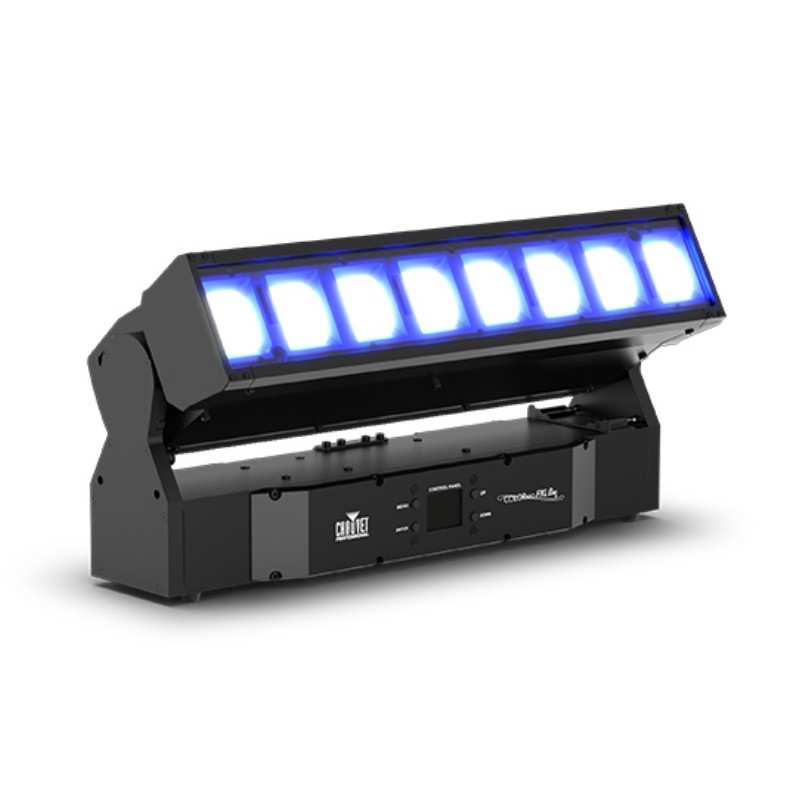

• COLORado PXL Bar 8
• Seetronic Powerkon IP65 power cable to bare end
• 1 Omega bracket with mounting hardware

Optional Accessories

• Neutrik powerCONC cables
• Neutrik etherCON cables DMX cables
• Upload_08 software uploader
• Road Case
