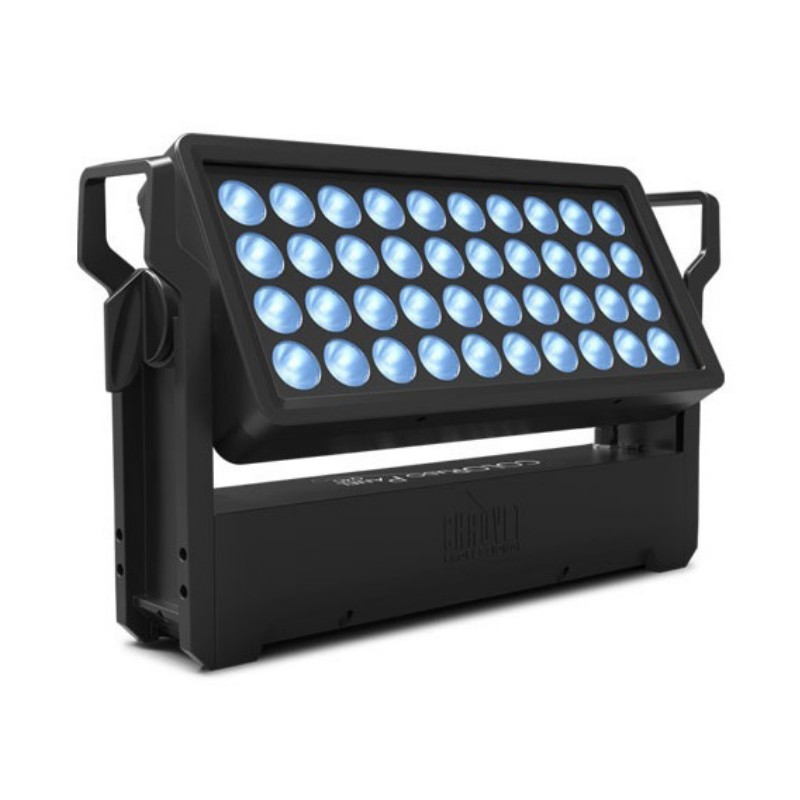

CHAUVET Professional COLORado Panel Q40

CHAUVET Professional COLORado Panel Q40 Φωτιστικό Panel Wash 40 x 15W LED RGBW IP65 - Μαύρο
Αμεσα Διαθέσιμο
Κωδικός (SKU): 118289
Κωδικός προϊόντος: CHAPR-COLORADOPANELQ40

Περιγραφή

A powerful IP65-rated rectangular wash light featuring 40 15W RGBW LEDs that delivers flawless edge-to-edge color mixing with an adjustable beam and wireless control.
Perfect for indoor or outdoor productions, events, and architectural installations requiring a durable and versatile wide-area wash of color.
• Delivers a broad CCT range from 2800 to 10000 K for flexible white light control.
• Includes a magnetic flood filter to easily widen the beam for broad area washes.
• Features onboard W-DMX and RDM for versatile wireless setup and remote device management.
• Eliminates on-camera flicker with adjustable PWM, making it ideal for broadcast applications.
• Achieve exceptionally smooth fades with selectable dimming curves that eliminate choppiness.
• Simplifies setup with IP-rated power linking for multiple units on a single circuit.


Αναλυτικά


COLORado Panel Q40 is a powerful IP65-rated rectangular wash light that features 40 15 W RGBW LEDs capable of flawless edge-to-edge color mixing.

This rugged indoor/outdoor unit can be manipulated through adjustable beam angles and includes a magnetic flood filter to produce a wider, but still even area wash.

Its outdoor rated power and data connectors allow for easy connections without propriety cabling.

Control it as you see fit with W-DMX and RDM.

Chauvet Professional COLORADO  Panel Q40 optical

Optical

  • Light Source: 40 LEDs (quad-color RGBW) 15 W, (970 mA), 50,000 hours life expectancy
  • Color Temperature (range): 2800 to 10000 K
  • Installed Optics: 15°
  • Beam Angle (w/o filter): 20.4°
  • Beam Angle (w/filter): 24.6°
  • Field Angle (w/o filter): 33.8°
  • Field Angle (w/ filter): 50.4°
  • Lumens: 29,407
  • Lumens (w/filter): 17,992
  • Illuminance (w/o filter): 8,347 lux @ 5 m
  • Illuminance (w/ filter): 2,590 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Chauvet Professional COLORADO  Panel Q40 Dynamic Effects

Dynamic Effects

  • Tilt Ranges: 0° to 150°
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 27 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Built-in Automated Programs: Yes
Chauvet Professional COLORADO  Panel Q40 Construction / Physical and certifications

Construction / Physical

  • Dimensions: 20.27 x 7.71 x 11.96 in (515 x 196 x 304 mm)
  • Weight: 28.2 lb (12.8 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum alloy, Aluminum die-cast
  • Filter Size: 16.75 x 8 in (425.45 x 203.2 mm)

Certifications / Qualifications

  • CE, MET, FCC
  • IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
Chauvet Professional COLORADO  Panel Q40 control and connections

Control

  • Control Protocol: DMX, W-DMX, RDM
  • DMX Channels: 4, 7, 11, 16 or 22
  • Modes/Personalities: 5 personalities (4ch, 7ch, 11ch, 16ch, 23ch)

Connections

  • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 5-pin IP65 XLR
  • Cable Length (power): 5 ft (1.5 m)
Chauvet Professional COLORADO  Panel Q40 electrical

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 2 units @ 120 V; 5 units @ 208 V; 5 units @ 230 V
  • Power and Current: 566 W, 4.729 A @ 120 V, 60 Hz
  • Power and Current: 559 W, 2.701 A @ 208 V, 60 Hz
  • Power and Current: 560 W, 2.439 A @ 230 V, 50 Hz
Chauvet Professional COLORADO  Panel Q40 included and Optional Accessories

What's Included

  • Seetronic Powerkon IP65 power cord
  • Color Blending Filter lens
  • Omega bracket with mounting hardware

Optional Accessories

  • COLORado Panel Q40 Barndoor
  • Professional Clamps: CTC-50HC, CTC-50HCN
  • Seetronic Powerkon power linking cables
  • 5-pin IP or Non-IP DMX Cables
  • COLORado Panel Q40 Filter Pack
