Optical

• Light Source: 24 LEDs (quad-color RGBW) 3 W, (900 mA), 50,000 hours life expectancy
• Color Temperature (range): 2800 to 10,000 K
• Beam Angle: 17°
• Field Angle: 30°
• Lumens: 3401 lm
• Illuminance (total): 1268 lux @ 5 m
• Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 2400 Hz, 6000 Hz, 18,000 Hz, 25,000 Hz

Dynamic Effects

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 20 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: No
• Dim Modes: 5
• Built-in Automated Programs: Yes
• Customizable Programs: Yes
• Recall Custom Programs: Yes

Construction / Physical

• Dimensions: 10.75 x 8.27 x 13.19 in (273 x 210 x 335 mm)
• Weight: 10.8 lb (5.0 kg)
• Exterior Color: Black
• Housing Material: Aluminum die-cast
• Accessory Holder/Gel Frame Size: 7.5 in (191 mm)

Certifications / Qualifications

• CE, MET
• IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve

Control

• Control Protocol: DMX, RDM
• DMX Channels: 7, 10 or 15
• Modes/Personalities: 5 personalities (HSIC, SSP, TOUR, TR16, STD.Y)

Connections

• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Data Connectors: 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 18 @ units 100 V; 22 units @ 120 V; 35 units @ 208 V; 38 units @ 230 V; 40 units @ 240 V
• Power and Current: 74 W, 0.613 A @ 120 V, 60 Hz
• Power and Current: 79 W, 0.385 A @ 208 V, 60 Hz
• Power and Current: 80 W, 0.350 A @ 230 V, 50 Hz

What's Included

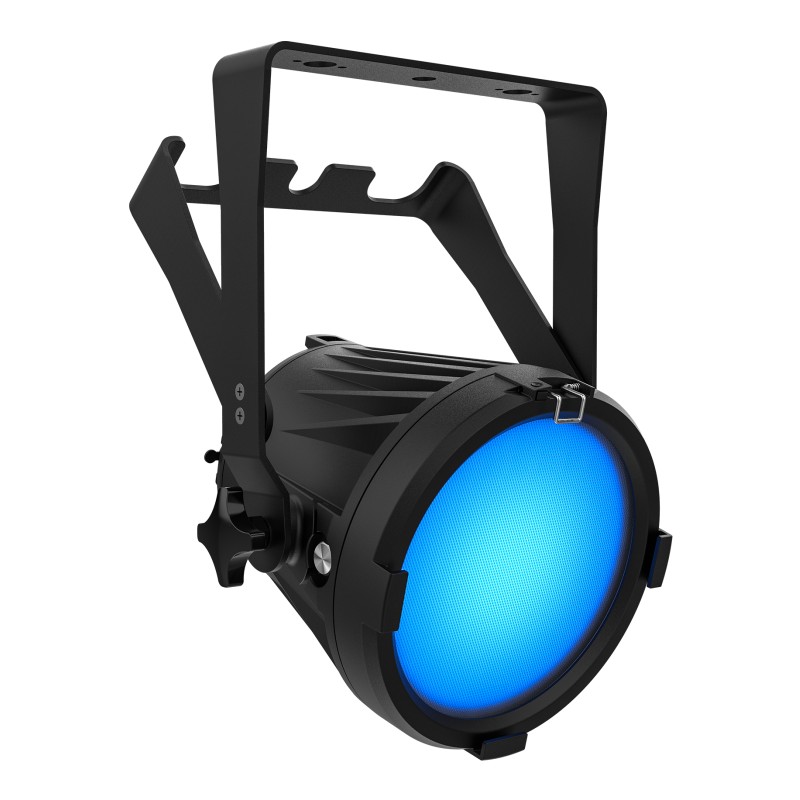

• COLORado 1QS
• Seetronic Powerkon IP65 power cord
• Gel Frame
• Omega Bracket

Optional Accessories

• Professional Clamps: CTC-50HC, CTC-50HCN
• Neutrik® powerCON® cables
• 3-pin or 5-pin DMX Cables
• Color Blending Filters: DF60X1D
• Ovation F7.5” Barn door
• Ovation 60 deg, 7.5” Honeycomb
