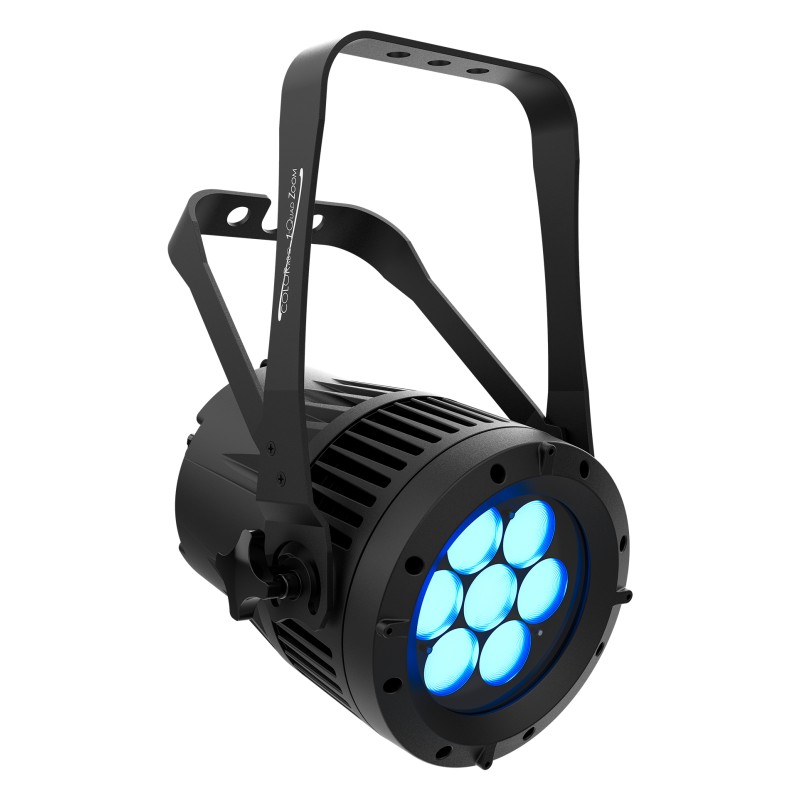

CHAUVET Professional COLORado 1-Quad Zoom

CHAUVET Professional COLORado 1-Quad Zoom Προβολέας Wash 7 x 15W LED RGBW IP65 - Μαύρο
Διαθέσιμο 10 εως 30 ημέρες
Κωδικός (SKU): 118283
Κωδικός προϊόντος: CHAPR-COLORADO1QUADZOOM

Περιγραφή

A compact and powerful IP65-rated wash light that delivers vibrant color from seven RGBW LEDs, featuring a versatile 7° to 45° zoom and dynamic center pixel control.
Its rugged, all-weather design makes it ideal for touring, event production, and architectural installations that demand a compact but potent wash fixture.
• Features seven 15W quad-color RGBW LEDs for powerful, saturated color mixing.
• Delivers a wide, motorized 7° to 45° zoom for flexible beam shaping.
• Built with a rugged, IP65-rated housing for reliable performance in any environment.
• Offers selectable dimming curves and 16-bit resolution for exceptionally smooth fades.
• Supports both DMX and RDM protocols for versatile system integration and control.
• Features IP-rated power and data connectors for secure, all-weather connections.


Αναλυτικά


COLORado 1-Quad Zoom is an excellent indoor/outdoor wash light with seven Osram RGBW LEDs delivering big time power from a compact, yet solid housing.

It maintains its IP65 rating with IP rated DMX cables, but standard 5-pin XLR DMX cables work perfectly for indoor use.

A 7° to 45° zoom gives you ample control over the beam, and selectable dimming curves facilitate the integration of the fixtures into an existing rig.

Center pixel control provides even more dynamic effects with full 16-bit dimming.

Outdoor rated power and data connectors allow for easy connections without proprietary cabling.

Chauvet Professional COLORADO 1-QUAD zoom optical

Optical

  • Light Source: 7 LEDs (quad-color RGBW) 15 W, (1 A), 50,000 hours life expectancy
  • Beam Angle: 7° to 32°
  • Field Angle: 13° to 45°
  • Zoom Range: 7° to 45°
  • Illuminance (13°): 3,280 lux @ 5 m
  • Illuminance (45°): 296 lux @ 5 m
  • PWM Frequency: 1,200 Hz
Chauvet Professional Colorado 1-QUAD zoom Dynamic Effects

Dynamic Effects

  • Dimmer: Electronic
  • Zoom: Motorized
  • Strobe Rate: 0 to 20 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 5
  • Dim Curves: 4
  • Built-in Automated Programs: Yes
  • Customizable Programs: Yes
  • Recall Custom Programs: Yes
Chauvet Professional Colorado 1-QUAD zoom Construction / Physical and certifications

Construction / Physical

  • Dimensions: 14.07 x 9.3 x 7.48 in (357 x 236 x 190 mm)
  • Weight: 15.4 lb (7 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast
  • Accessory Holder/Gel Frame Size: 7.5 in (191 mm)

Certifications / Qualifications

  • CE, MET
  • IP Rating: IP65, temporary outdoor/wet use
Chauvet Professional Colorado 1-QUAD zoom control and connections

Control

  • Control Protocol: DMX, RDM
  • DMX Channels: 3, 4, 5, 6, 7, 10, 12, 17 or 25
  • Modes/Personalities: 12 personalities (AR1D, AR2Z, ARC1, ARC2, ARC2D, ARC2S, C1Q, FULL, HSV, STD.Y, TOUR, TR16)

Connections

  • Power Connection: Edison (local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)
Chauvet Professional Colorado 1-QUAD zoom electrical

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 15 units @ 120 V; 27 units @ 208 V; 28 units @ 230 V
  • Power and Current: 101 W, 0.861 A @ 120 V, 60 Hz
  • Power and Current: 104 W, 0.501 A @ 208 V, 60 Hz
  • Power and Current: 106 W, 0.472 A @ 230 V, 50 Hz
Chauvet Professional Colorado 1-QUAD included and Optional Accessories

What's Included

  • COLORado 1-Quad Zoom
  • Seetronic Powerkon IP65 power cord
  • Gel frame holder (7.5 in/191 mm accessories)
  • Gel frame

Optional Accessories

  • Professional Clamps: CTC-50HC, CTC-50HCN
  • 5-pin DMX Cables
  • Color Blending Filters: DF60X1D
