Specifications

• DMX Channels:3, 29, or 51
• DMX Connectors:3-pin XLR
• Pan and Tilt:540°/180°
• Colors: (moving head): 9 + open, split colors, continuous scroll at variable speeds
• Gobos: (moving head): 9 + open, continuous scroll at variable speeds
• Light Source:

(pars): 3 LEDs (hex color RGBAW+UV) 6 W (2 A), 50,000 hours life expectancy

(strobe): 4 LEDs (cool white) 5 W (1.2 A), 50,000 hours life expectancy

(derby): 8 LEDs (2 red, 2 green, 2 blue, 2 white) 6.5 W (2 A), 50,000 hours life expectancy

(moving head) 1 LED (cool white) 32 W, (3 A), 50,000 hours life expectancy

(Laser) 638 nm/30mW (red) laser diode, 520 nm/20 mW (green) laser diode, 450 nm/ 50 mW (blue) laser diode

• Strobe Rate:0 to 30 Hz
• Beam Angle:

(moving head): 17°

(pars): 22°

(strobe): 30°

• Field Angle:

(pars): 33°

(strobe): 62°

• Coverage Angle:

(derby): 131°

(laser): 93°

• Fits Tripod Size:1.5 in (37.4 mm)
• Illuminance:

(pars): 1,205 lux @ 2 m (per par)

(moving head): 5,140 lux @ 2 m (per head)

(strobe): 130 lux @ 2 m

• Power Linking:7 units @ 120 V; 12 units @ 230 V
• Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current:

250 W, 3 A @ 120 V, 60 Hz

248 W, 1.8 A @ 230 V, 50 Hz

• Weight:(bar only) 31 lbs (14 kg)
• Size:43 x 5.7 x 17.7 in (1100 x 144 x 449 mm)
• Approvals:CE, UKCA, RoHS, FCC, FDA
• Stand Height: 4.8 ft to 8.3 ft (1.5 to 2.5 m)
• Footswitch Operating Frequency: 433 MHz
• Footswitch Max Unobstructed Distance: 100 ft (30.5 m)
• Max Unobstructed Distance (D-Fi): 600 ft (183 m)
• Footswitch Battery: 9 V alkaline
• Included Controllers: RF remote, wireless footswitch
• Cable Length: 10 ft (3 m)
• Tripod Thickness: 1.37 in (35 mm)
• Optional Controllers: RF
• RF Remote Battery: 23A, 12 V alkaline

What's included

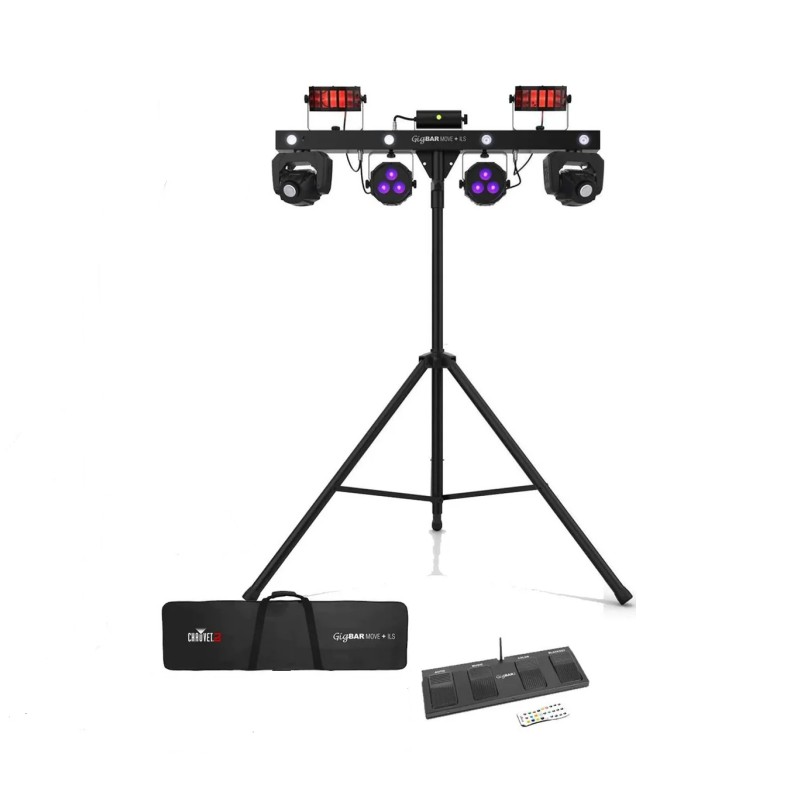

• GigBar Move Plus ILS
• Power cord
• RF Remote
• Carry bag
• Tripod
• Tripod carry bag
• Footswitch
• User Manual
