Specifications

• DMX Channels:1, 2 or 4
• DMX Connectors:3- and 5-pin XLR
• Light Source:1 COB (warm white) 100 W, (2.7 A), 50,000 hours life expectancy
• Strobe Rate:0 to 25 Hz
• Beam Angle:35°, 65°, or 67°
• Field Angle:58°, 96°, or 89°
• Illuminance:

(35°): 6,085 lux @ 2 m (lens 1)

(67°): 2,532 lux (no lens)@ 2 m

(65°): 2,050 lux @ 2 m (lens 2)

(35°): 974 lux @ 5 m (lens 1)

(67°): 405 lux @ 5 m (no lens)

(65°): 328 lux @ 5 m (lens 2)

• Lumens:11,322
• Power Linking:7 units @ 120 V; 14 units @ 230 V
• Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current:

122 W, 1.2 A 120 V, 60 Hz

119 W, 0.5 A @ 230 V, 50 Hz

• Weight:7.6 lb (3.5 kg)
• Size:8.6 x 9.65 x 12 in (220 x 245 x 305 mm)
• Approvals:CE, MET
• Accessory Holder/Gel Frame Size: 6.25 in (158.75 mm)
• Color Temperature: 3500 K
• Optional Controllers: D-Fi USB
• CRI: 98

What's included

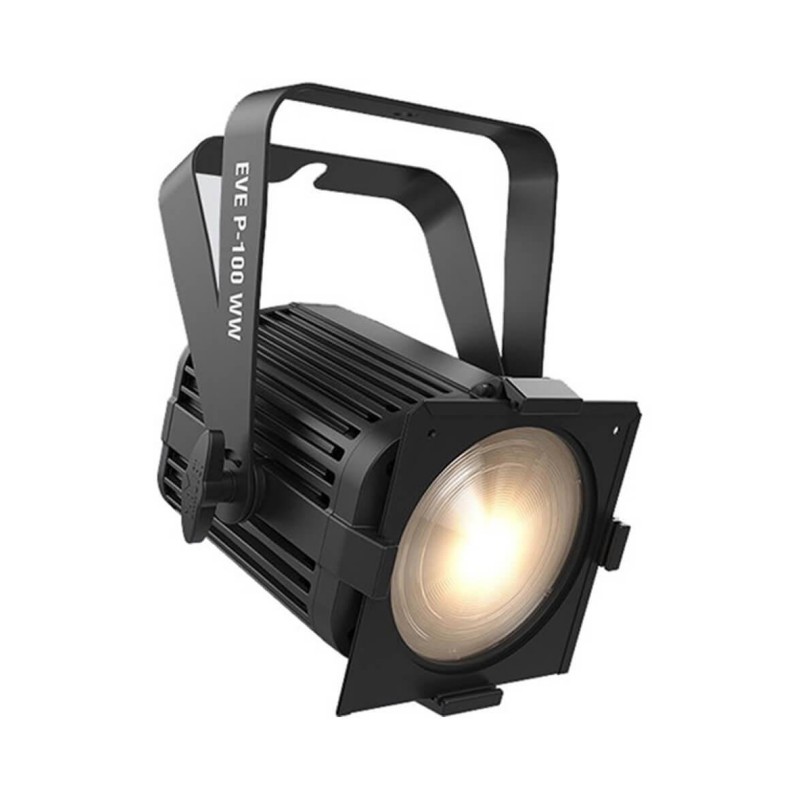

• EVE P-100 WW
• Lens 1 and Lens 2
• Power cord
• Gel Frame
• Hanging bracket
• Quick Reference Guide
