Specifications

• DMX Channels:1 or 3
• DMX Connectors:3-pin XLR
• Light Source:1 LED (warm white) 50 W, (1.3 A), 50,000 hours life expectancy
• Beam Angle:(Narrow): 17° (Wide): 50°
• Zoom Angle:(manual): 17° to 50°
• Illuminance:

(17°): 4,780 lux @ 2 m

(50°): 998 lux @ 2 m

(17°): 853 lux @ 5 m

(50°): 156 lux @ 5 m

• Power Linking:16 units @ 120 V; 26 units @ 230 V
• Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current:

60 W, .5 A @ 120 V, 60 Hz

58 W, .3 A @ 230 V, 50 Hz

• Weight:8.41 lb (3.9 kg)
• Size:11.1 x 8.3 x 13 in (281 x 212 x 328 mm)
• Approvals:CE, MET
• Accessory Holder/Gel Frame Size: 6.25 in (158 mm)
• Color Temperature: 3500 K
• CRI: 92
• Bracket Mounting Hole: M12
• Optional Controllers: D-Fi USB

What's included

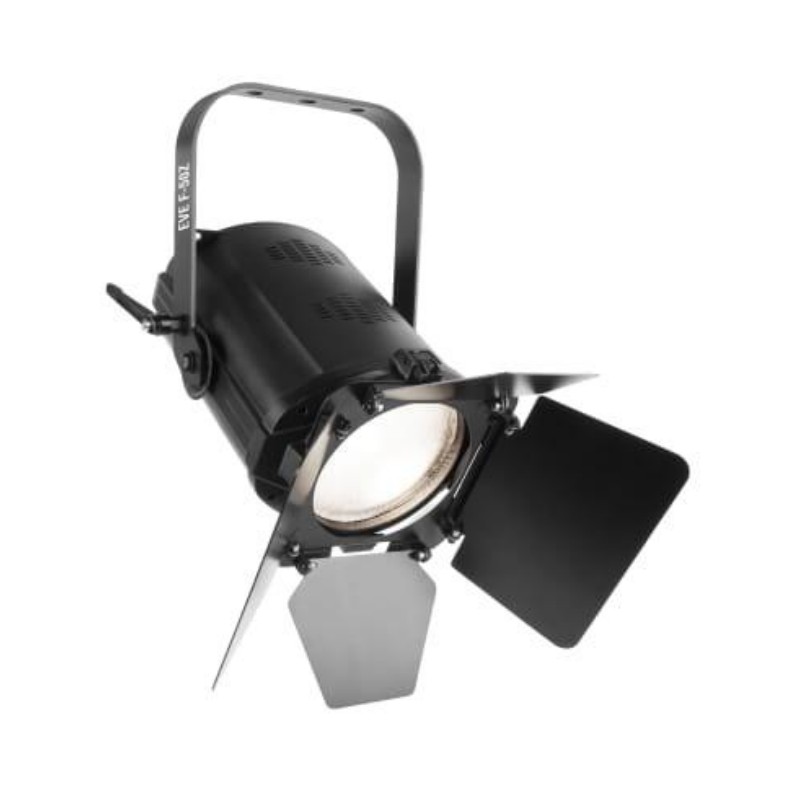

• EVE F-50Z
• Power cord
• Barn doors
• Gel Frame
• Warranty card
• Quick Reference Guide
