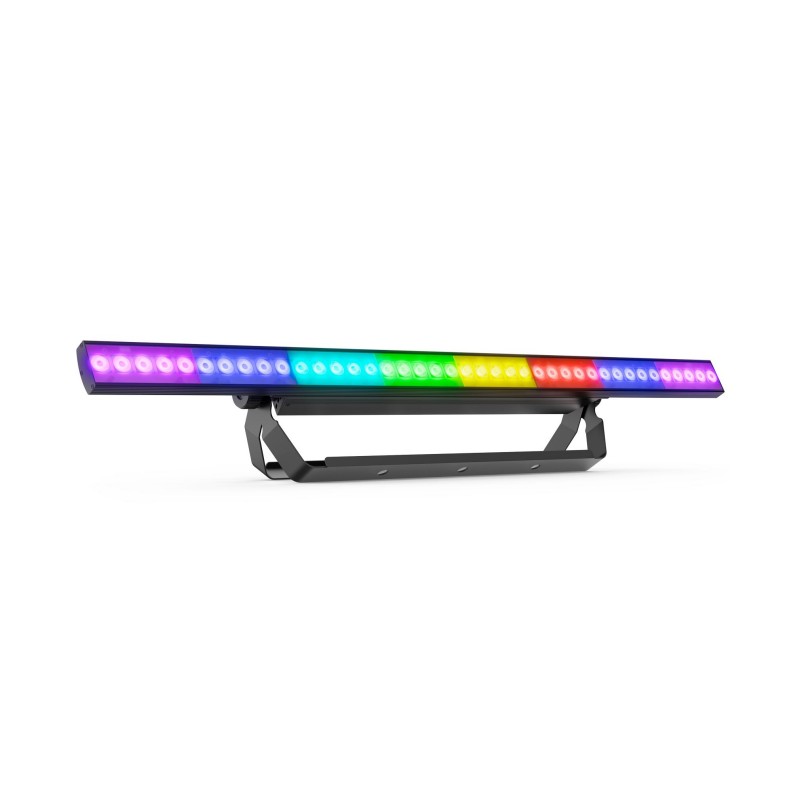

Create standout event visuals with COLORstrip PiX ILS.
This strip light produces wash light and eye candy effects like you’ve never seen before thanks to its custom lenses.
It has 40 tri-color LEDs (Red, Green, Blue).
ILS compatibility makes creating coordinated light shows with this unit and different fixture types easy as 1, 2, 3.
Master the beauty and power of color with this innovative fixture.

Highlights

Full-size LED strip light functions as a pixel mapping effect, uplight, or for great eye-candy effects
ILS compatibility for use in the ILS ecosystem
Create dazzling effects by linking multiple units together to make runway chases
D-Fi USB compatibility for wireless Master/Slave or DMX control (D-Fi™ USB sold separately)
Create amazing animations and video effects with individual LED control
Ideal for quiet applications due to silent operation and no moving parts
Wireless, non-DMX operation is available with the optional IRC-6 remote
Easily transports in the optional CHS-60 VIP Gear Bag

What's Included

COLORstrip Pix ILS
Power cord
Quick Reference Guide

Specifications

DMX Channels:3, 8, 120, 122
DMX Connectors:3-pin XLR
Light Source:40 LEDs (tri-color) 2 W, (0.8A), 50,000 hours life expectancy.
Strobe Rate:0 to 20 Hz
Beam Angle:14°
Field Angle:24°
Illuminance:4,967 lux @ 2 mLumens:1,491
Power Linking:7 units @ 120 V; 10 units @ 230 V
Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current:
79 W, 1.2 A @ 120 V, 60 Hz
77 W, 0.8 A @ 230 V, 50 Hz
Weight:6.2 lb. (2.8 kg)
Size:38.9 x 2 x 6.2 in (987 x 49 x 157 mm)
Approvals:CE, ROHS
Cable Length: 5 ft (1.52 m)
Bracket Mounting Hole: 13mm
Optional Controllers: IRC6, ILS Command
