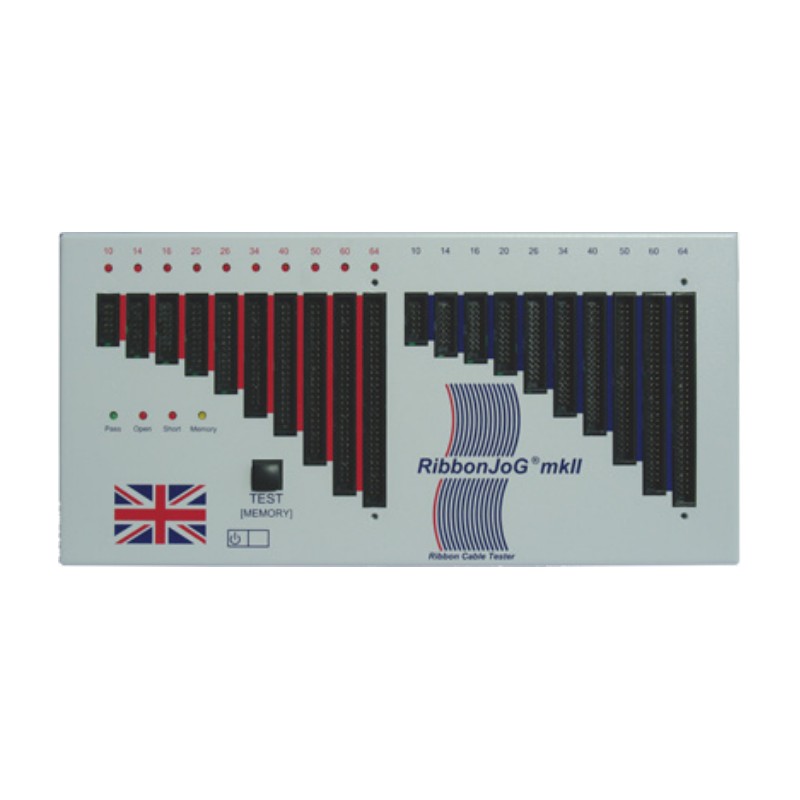

CONNECTORS:

Standard 0.1" or 2.54mm x 2.54mm pitch headers

64way
60way
50way
40way
34way
26way
20way
16way
14way
10way


Test modes:

-Memory OFF, just plug the cable in and press the test button. If the last connection found matches a standard connector pin count then the cable passes, otherwise the cable has failed with either a short or open circuit.
-Memory ON, test the cable against a special cable held in memory. All 64 pins are checked.


Specification:

-Continuity (end to end) less than 4.7K ohms.
-Short Circuits (end to end) and between connected pins, less than 4.7K ohms.
-Open Circuits (end to end) and between connected pins, greater than 10K ohms.
-Less than 1 second test time.
-Minimum distance between connectors of the same size only 130mm.
-Non-volatile memory feature.
-L 290mm W 143mm D 35mm.
-Uses 4 x AAA battery (not supplied).
