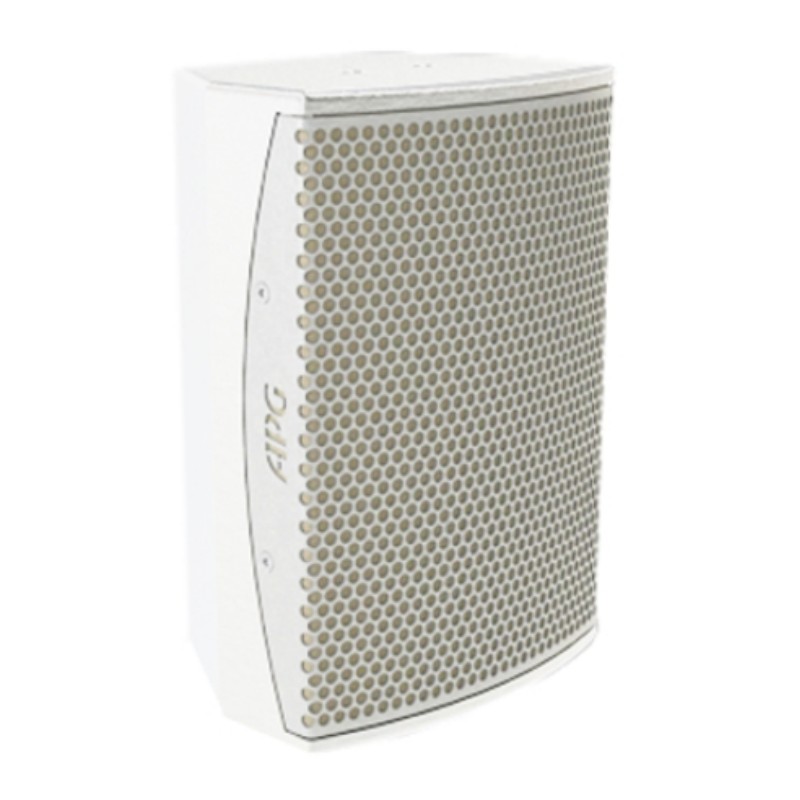

The iX12-O is a two way full range compact loudspeaker designed for fixed installation purpose. The lo/ mid section comprises a 12" cone driver installed in bass reflex. The mid/hi section comprises a 1" HF driver.

The iX12-O is equipped with a set of high coaxial speakers which confers a perfectly coherent sound field with a conical dispersion of 100°. The iX12-O integrates the same electro-acoustic set according to an ergonomics and many accessories designed specifically to answer all types of fixed installation constraints : trapezoidal shape (cut sides with 22,5°) allowing vertical or horizontal positioning by one or two speakers with coupling bracket, special “L” shape for mural application, internal metal structure inserts and for safety, rigging system with clamp or indexing rail.

This rail allows multitude positions of adjustment in the vertical angle. Dedicated processor DMS48F, make it possible to protect and optimize the operation of the iX12-O in full range mode or combined with subwoofer.

Technical features
Usable bandwidth(± 10 dB): 50 Hz - 20 kHz
SPL max @ 1m: 134 dB SPL (1)
Nominal directivity (H° x V°): 90° x 90° (2)
Nominal impedance: 8 ohm
Transducers: 1 x 12'' coaxial ventiled - 1 x 1,4'' HF ND driver
Topology: Coaxial - APG NDB Baffle
Type of load: Bass Reflex
Way and amplification section: 2 ways, mono amplified
AES power (W): 450 W (3)
Maximum power handling (W): 1800 W (4)
Dimensions H,W,D (mm): 15,7" x 23,5" x 13,4" (400 x 597 x 341 mm)
Weight (kg): 44 lb (20 kg)
Connectors: 2 x Gland connector
IP: 54
