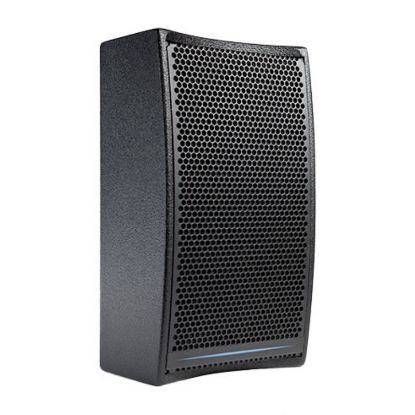

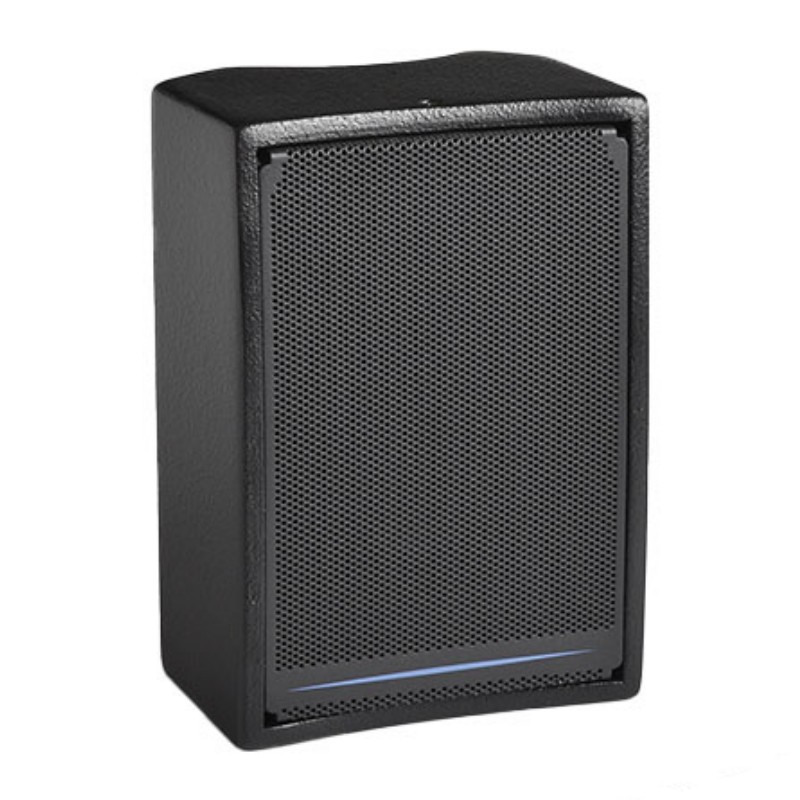

The APG DX5 speaker is an ultra-compact two-way wideband speaker. The LF/MF section comprises a 5" long-throw speaker loaded in a bass-reflex enclosure, with a coaxial dome tweeter handling the HF section.

Like the other APG Dispersion series, the DX5 uses a coaxial loudspeaker set that provides extremely coherent coverage through 110° conical field. The DX5 is characterized by an exceptional power/ size ratio, great clarity in sound reproduction and highly sophisticated ergonomics: due to its cabinet geometry, with a 30° on one side, the DX5 is at home either on the stage as a monitor, or as a main front of house speaker.

The wooden enclosure features a pole mount socket, recessed connectors and threaded inserts, allowing the use of a 4mm steel bracket for flying or wall-/ceiling-mount purposes (option ETDX5). Dedicated DMS48F processor is available to operate the DX5 in wideband mode or combined with APG subwoofers 'SB' series.

Technical features
Usable bandwidth(± 10 dB): 60 Hz - 20 kHz
SPL max @ 1m: 124 dB SPL (1)
Nominal directivity (H° x V°): 110° x 110° (2)
Nominal impedance: 16 ohm
Transducers: 1 x 5'' ND with ventilated driver - 1 x 1'' HF ND driver
Topology: Coaxial
Type of load: Bass Reflex
Way and amplification section: 2 ways, mono amplified
AES power (W): 100 W (3)
Maximum power handling (W): 400 W (4)
Dimensions H,W,D (mm): 10,2" x 7" x 7" (260 x 180 x 180 mm)
Weight (kg): 8,8 lb (4 kg)
Connectors: 2 x Speakon NL4MP
IP: 43
