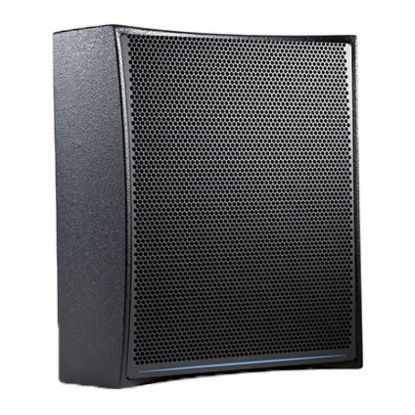

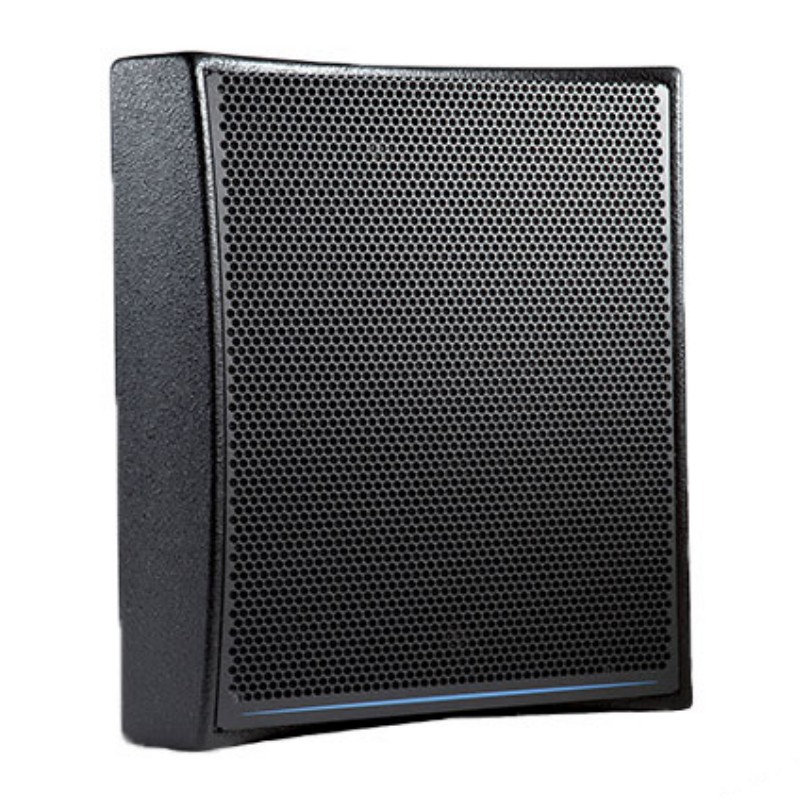

The DX12 is a two way, compact wide band multipurpose speaker. The mid/low transducer is a 12" neodymium bass reflex. The DX12 takes advantage of a proprietary technique of forced thermal transfer, which drastically reduces thermal compression effects, resulting in exceptional sound pressure capacity down to 60Hz.

The high frequency section comprises a HF 1" neodymium compression driver offering extremely low distortion and frequency extension up to 20kHz. The passive filtering is designed to manage the phase alignment of the speakers and to obtain amplitude and linear phase responses in with a crossover that limits the distortion ratio. The original cabinet design naturally enables two different angles as a floor monitor (30° for near-field and 45° for far-field applications), or it may be pole-mounted or flown for use as a FOH, delay or in-fill system.

It also integrates 2 handles for quick and easy handling in all positions and cable plugs are protected. The 12APT90 option is an angle tuning plate with the ETDX12 bracket that is hidden in the sides of the cabinet. The QFS4 comprises 4 parts for a quick and secure hanging with bolts or pins. The DX12 works in mono amplification and requires the use of an APG processor in the musical high power applications. For low and very low frequency reinforcement, the following subs are recommended: SB112, SB115-M2, TB118S or TB215S.

Technical features
Usable bandwidth(± 10 dB): 50 Hz - 20 kHz
SPL max @ 1m: 136 dB SPL (1)
Nominal directivity (H° x V°): 90° x 90° (2)
Nominal impedance: 8 ohm
Transducers: 1 x 12'' ND with ventilated driver - 1 x 1'' HF ND driver
Topology: Coaxial
Type of load: Bass Reflex
Way and amplification section: 2 ways, mono amplified
AES power (W): 400 W (3)
Maximum power handling (W): 1600 W (4)
Dimensions H,W,D (mm): 20,4" x 19,4" x 10,4" (520 x 495 x 265 mm)
Weight (kg): 41,9 lb (19 kg)
Connectors: 2 x Speakon NL4MP
IP: 43
