Active Audio SA180P-W

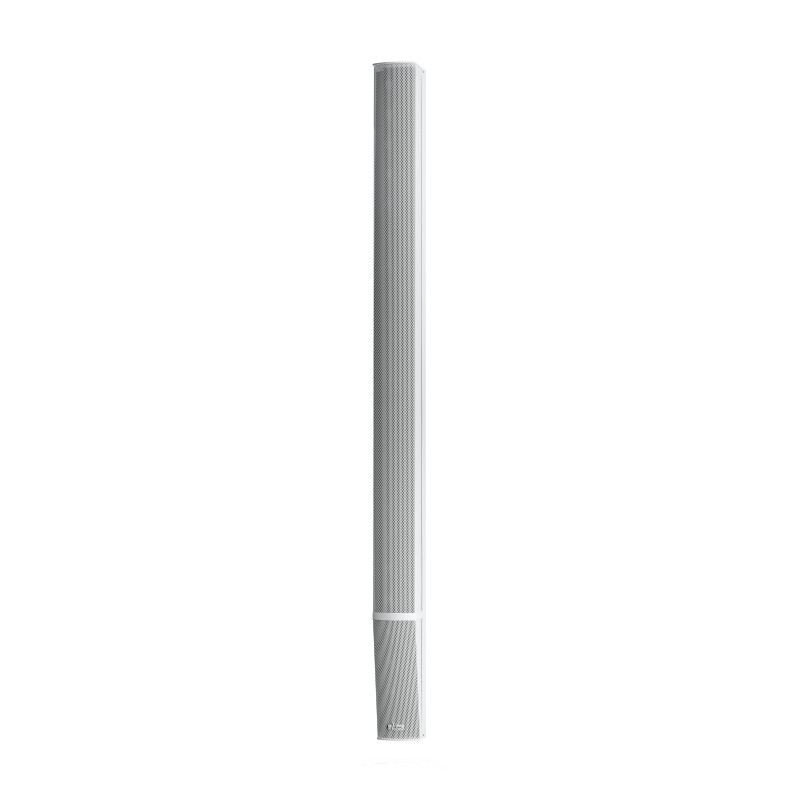

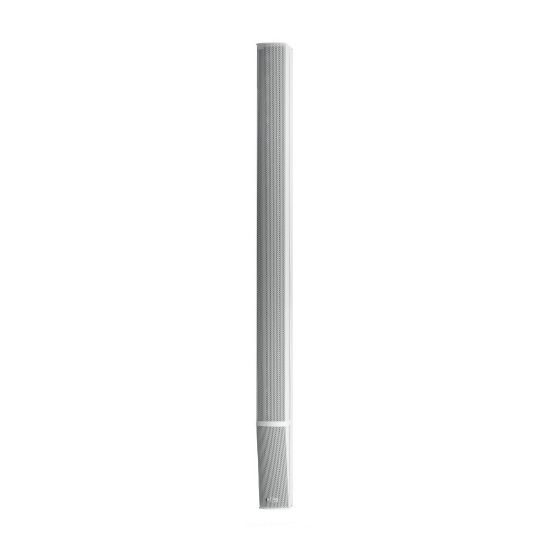

Active Audio SA180P StepArray DSP Column Loudspeaker 1,80 m - White

Εναλλακτικά Χρώματα / Μεγέθη

Κωδικός (SKU): 130947
Κωδικός προϊόντος: ACT-SA180P-WHT

Περιγραφή

DSP column loudspeaker, 1.80m
For venues with horizontal seating
Designed for mid-sized spaces
Range: 40m at ±5dB



Αναλυτικά


When Active Audio began designing the StepArray range, our aim was to create a product that would deliver superior value added to what was available on the market at that time.

The challenge was developing a public address system capable of offering perfectly intelligible speech in reverberant venues.

The solution of a column loudspeaker with control directivity was a natural choice, but we wanted to add innovative features that would give our speakers a competitive advantage.

The main drawback with the speakers on the market was their built-in control circuitry, which meant heavy and expensive products that were difficult to install and configure.

The idea behind the DGRC (Digital & Geometric Radiation Control) patent was to reduce the number of channels and thereby externalize the circuitry and drive down costs by allowing the DSP to be shared between several loudspeakers.

StepArray is one of Active Audio’s technological showstoppers, a product that has instilled a great sense of pride in the entire team.

Active Audio StepArray Series applications

Applications

  • Public places
  • Conference room
  • Houses of worship
Active Audio StepArray Series applications Advantages

Advantages

  • Optimal intelligibility
  • Even Sound Coverage
  • Acoustic Comfort
  • Compact
  • Secured
  • Affordable
Active Audio StepArray Series applications Acoustical data

Acoustical data

  • Max SPL: 95dBSPL @ 15m
  • Range ±3dB: 30m
  • Range ±5dB: 40m
  • Angle of audience: 0°-5°
  • Frequency bandwidth: (-10dB) 110Hz-19kHz
  • Horizontal opening angle: 180°
Active Audio StepArray Series applications Electrical and mechanical data

Electrical data

  • Number of Channels: 3
  • Nominal impedance: 8Ω
  • Cable: 4G
  • Connectors: Euroblock 12-pins

Mechanical data

  • Dimensions (WxPxH): 124mm x 135mm x 1024mm
  • Net / shipping weight: 17kg / 21kg
  • Colors: white, black

Πληροφορίες και λήψεις

Manual

Technical Specifications
