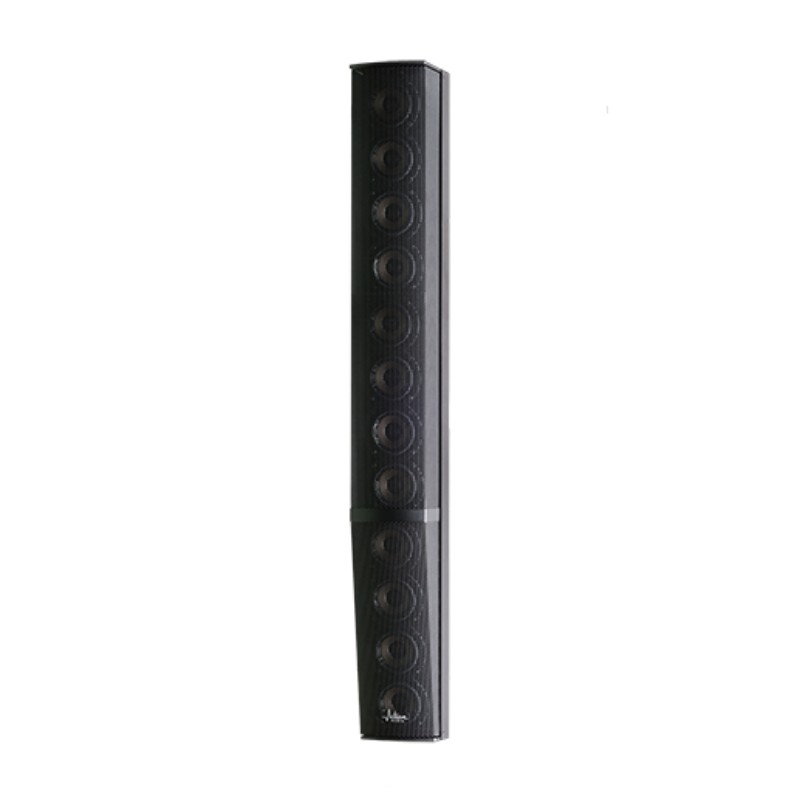

Active Audio SA150P+

Active Audio SA150P+ StepArray+ Self-powered DSP Column Loudspeaker DanteTM-enabled 1,50 m

Εναλλακτικά Χρώματα / Μεγέθη

Ρωτήστε για τιμή

Κωδικός (SKU): 126898

Κωδικός προϊόντος: ACT-SA150P+

Λήψεις

Περιγραφή

Dante™-compatible powered DSP column loudspeaker, 1.50m
For venues with horizontal seating
Designed for confined spaces or in combination with larger models
Range: 21m at ±5 dB

Με βάση την επιλογή σου, ενδέχεται να σε ενδιαφέρουν τα παρακάτω προϊόντα:

Active Audio iS110

Active Audio iS110 Subwoofer 10" passive - Black

Ρωτήστε για τιμή

Active Audio SARO

Active Audio SARO Ray-On Handling system for SA and RayOn for tall stands

Αμεσα Διαθέσιμο

Ρωτήστε για τιμή

Αναλυτικά

StepArray+ is the latest range of column loudspeakers marketed by Active Audio.

With the advent of networked audio management, we wanted to offer an end-to-end solution of self-powered StepArray column loudspeakers compatible with market leader Dante™.

We have therefore pioneered the StepArray+ range, which combines audio over IP with all the features of StepArray.

Applications

Public places
Conference room
Houses of worship

Advantages

Superior intelligibility
Even sound coverage
Dante network compatibility
All-in-one solution
Easy maintenance

Acoustical data

Max SPL: 95dBSPL @ 10m
Range ±3dB: 15m
Range ±5dB: 21m
Angle of audience: 0°-5°
Frequency bandwidth: (-10dB) 110Hz-19kHz
Horizontal opening angle: 180°

Active Audio StepArray+ Series applications Electrical and mechanical data

Electrical data

Number of Channels: 3
Nominal impedance: 8Ω
Inputs: 1x sym. analog, 1x Dante™
Network: 1x RJ45Dante™

Mechanical data

Dimensions (WxPxH): 124mm x 131mm x 1524mm
Net / shipping weight: 14kg / 17kg
Colors: white, black
