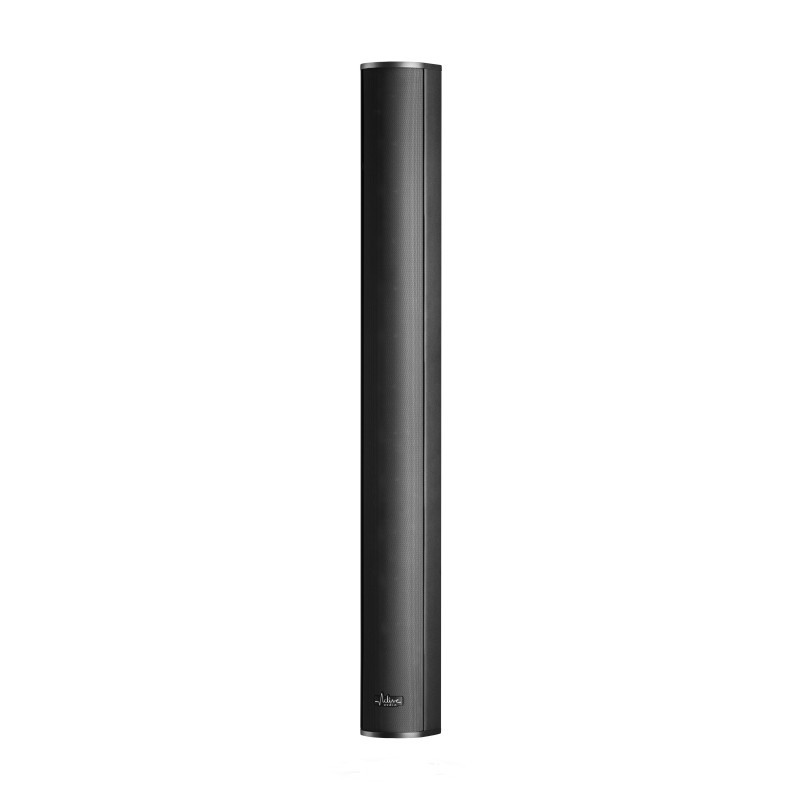

Applications

• Transport Hubs
• Public places
• Conference room
• Houses of worship

Advantages

• Flawless intelligibility
• Wide and even sound coverage
• Vertical mounting system
• Dante-enabled

Acoustical data

• Max SPL: 89dBSPL @ 8m
• Sensitivity:72dB/1W @ 8m
• Range ±3dB: 15m
• Range ±5dB: 20m
• Frequency bandwidth: (-10dB) 120Hz-18kHz
• Horizontal opening angle: ±180° (1kHz) / ±70° (4kHz)
• Vertical directivity: Wavefront synthesis

Electrical data

• Continous power: 60W
• Nominal impedance: 8Ω
• Connectors: RJ45
• Protection: Thermal fuse
• Certification: PoE+ certified

Mechanical data

• Dimensions (WxPxH): 128mm x 117mm x 1115mm
• Net / shipping weight: 8.5kg / 9.3kg
• Environment: IP23
• Colors: white, black

Analog kick sounds generated by MS-20 filter oscillation

The volca kick generates powerfully present kick sounds using a completely analog circuit. To create those sounds, it uses not a typical sine wave, but the sound of an oscillating filter from the original MS-20. The powerful Rev.1 filter of the MS-20 self-oscillates when resonance is increased to the maximum, and this is used to produce powerful kick sounds with complex overtones.

Simple and effective parameters are provided, allowing you to freely design a wide range of kick sounds to your taste. Start the sound design process by using MS-20 RESONATOR (PITCH/BEND/TIME) to control the sense of pitch that generates the "body resonance" of the kick sound. Then use PULSE COLOUR/LEVEL to adjust the clip components to control the sense of attack, and AMP ATTACK/DECAY to intuitively control the decay of the sound. From tight kicks to fat, slow-decaying kicks, and pitched kick bass, it's possible to create kick sounds that are appropriate for every type of dance music

16-step sequencer allows automation of all parameters

The volca kick features a 16-step sequencer that gives you plenty of improvisatory freedom. You can use it to quickly lay out a kick drum pattern, and it also supports realtime recording, which is an ideal way to perform kick bass phrases. And the pattern chain function lets you connect multiple sequence patterns for successive playback, making it possible to construct large-scale developments of 32, 64, or even 256 steps by joining up to 16 sequences.

The volca kick’s motion sequence function records your knob movements, letting you add time-varying change to the sound. This is great way to polish your loops, and also lets you generate highly original live performances. Up to 16 sequence patterns and sounds can be stored in internal memory.

Playback can be synchronized with another unit

The volca kick provides a sync connector that can be easily connected to many of KORG's other synths and groove machines.

Connect to other volca units, minilogue, electribe or SQ-1, and experience a session with synchronized sequencer playback. The MIDI IN jack lets you use the volca kick as a sound module for DAW and MIDI controller.

Specifications

• Keyboard: Multi touch Keyboard / step key
• Kick Generator:

Type Analog synthesis

Maximum Polyphony: 1 voice

Structure: VCF (no input MS-20 Rev1 filter as resonator), Pulse Generator, VCA, analogue DRIVE, analogue TONE

MS-20 Resonator: Pitch/Octave, Bend, Time

Pulse: Colour, Level

Amp: Attack, Decay

Tone: Low Pass Filter, 12 db/oct

• Sequencer:

Number of parts: 1

Number of Steps: 16

Number of Recording Patterns: 16 (each with its own sound program)

Controls: Pattern Chain, Motion Sequence, Touch FX, Active Step, Accent (On/Off, Depth), Slide, Bend Reverse, Roll (1/4, 1/2, 1/1, 4/3, 2/1, 3/1), Octave (1 Oct Up, 2 Oct Up), Sustain, Swing

Specifications

• Connectors:

Audio Output: Headphones (3.5mm stereo mini jack)

Sync In: (3.5mm monaural mini jack, Maximum input level: 20V)

Sync Out (3.5mm monaural mini jack, Maximum Output level: 5V)

MIDI: In

• Power:

Battery Life: Approximately 10 hours (using alkaline batteries)

Power supply: AA alkaline battery x 6 or AA nickel-metal hydride battery x 6 Or AC adapter (DC 9V) (optional)

• Dimensions (WxDxH): 193mm x 115mm x 46mm
• Weight: 377g
• Included Items: AA alkaline battery x 6 (for verifying operation), Sync Cable
• Accessories: AC adapter (DC 9V)
