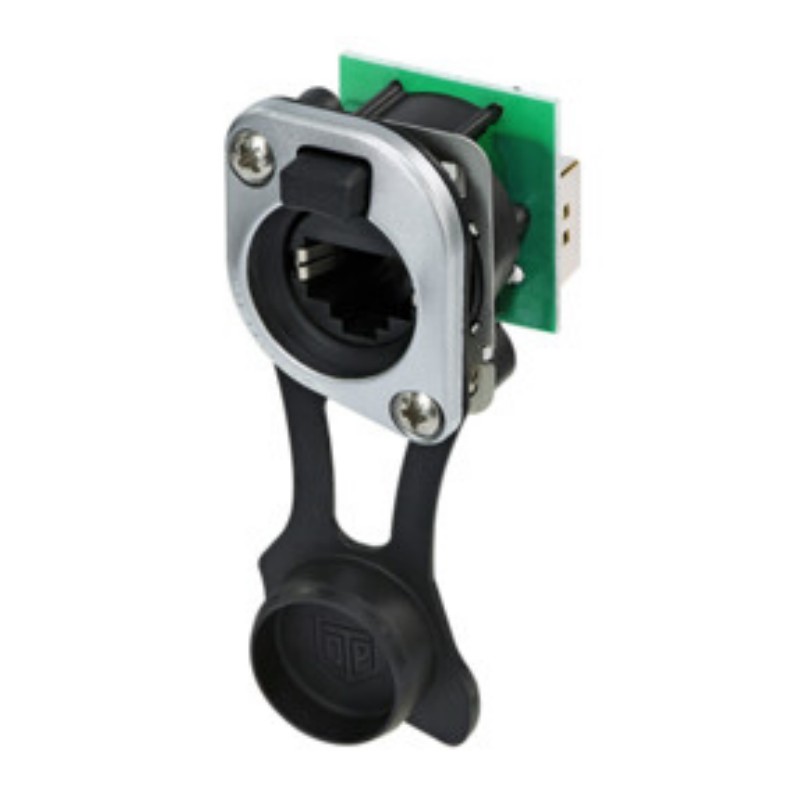

The etherCON series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lighting network applications with IP65 rating and UL 50E certification. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry. The D-series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.
ATTENTION: Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.

IP65 rating and certified outdoor protection to UL 50E (in combination with NE8MX-TOP or sealing cap closed)
Uses high impact UV-resistant and gasket materials
Accomodates NE8MCX* or any standard RJ45 plug
CAT5e according to ISO/IEC 11801 and TIA/EIA 568A/B
Approved latch lock system
Mountable from the front of the panel
Ground panel connection
PoE type 4 class 8 (100W) acc. IEEE 802.3bt
